● Wireless transmit, 470Mhz / 433Mhz;
● Wireless transmission distance, 150 meters;
● Transmitting frequency: 5 min
● Battery-powered, more than 3 years;
● Temperature Range: -30℃~85℃; Percision: ±1℃
● Humidity Range: 0-100%RH; Percision: ±3%RH
● Application: Switchgear, Busbar, Bus duct, Electric contact, Cable joint, Rain main unit and etc.
Official Distributor
Guarantee Shipping
Product Detail:
General

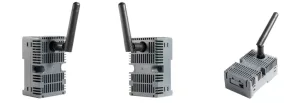

AHE100 temperature and humidity sensor is mainly used to detect the internal temperature and humidity of medium and high voltage switchgear, terminal box, ring network cabinet, box transformer and other equipment. The module adopts a special shell with good ventilation effect and exquisite appearance, which can effectively protect internal components and improve service life.
Installation
AHE100 temperature and humidity sensor is installed by guide rail (DIN35mm). It is necessary to turn on the battery switch before use.

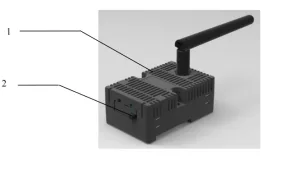

1 —— Wireless temperature and humidity sensor body
2 —— Power switch

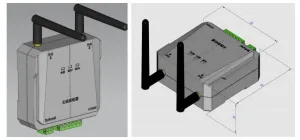

Wireless Transceiver
The wireless temperature coordinator ATC600 used with AHE100 wireless temperature and humiditysensor can be installed by guide rail (DIN35mm).

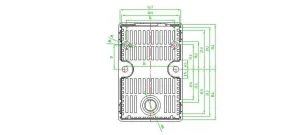

Dimension
Typical Connection
HMI with ATC600-C:
Note: The HMl is connected with an ATC600-C through RS485 interface to realize centralized temperatureand humidity display, and one ATC600-C can receive 240 temperature and humidity sensors

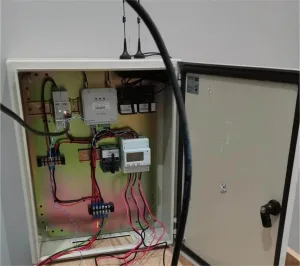

Photos on site
