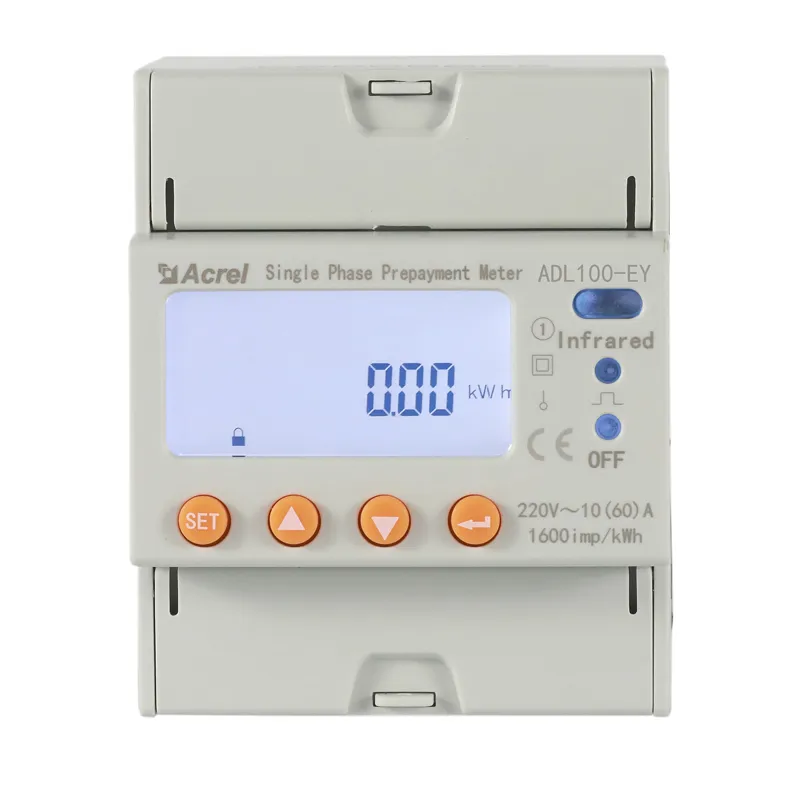

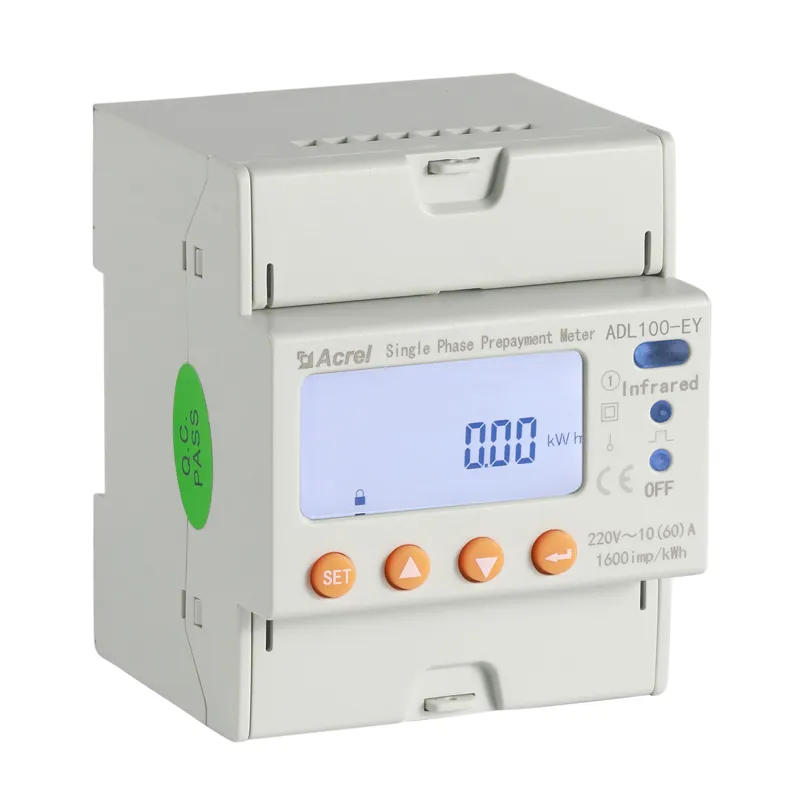

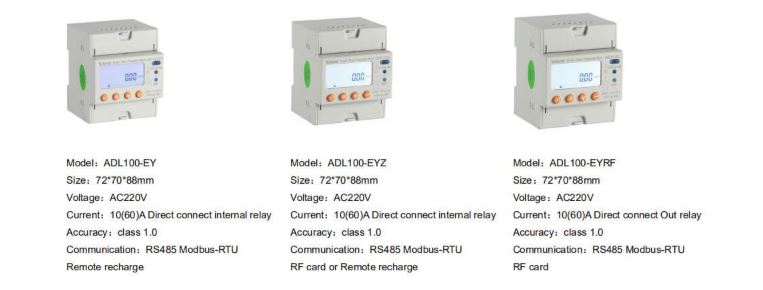

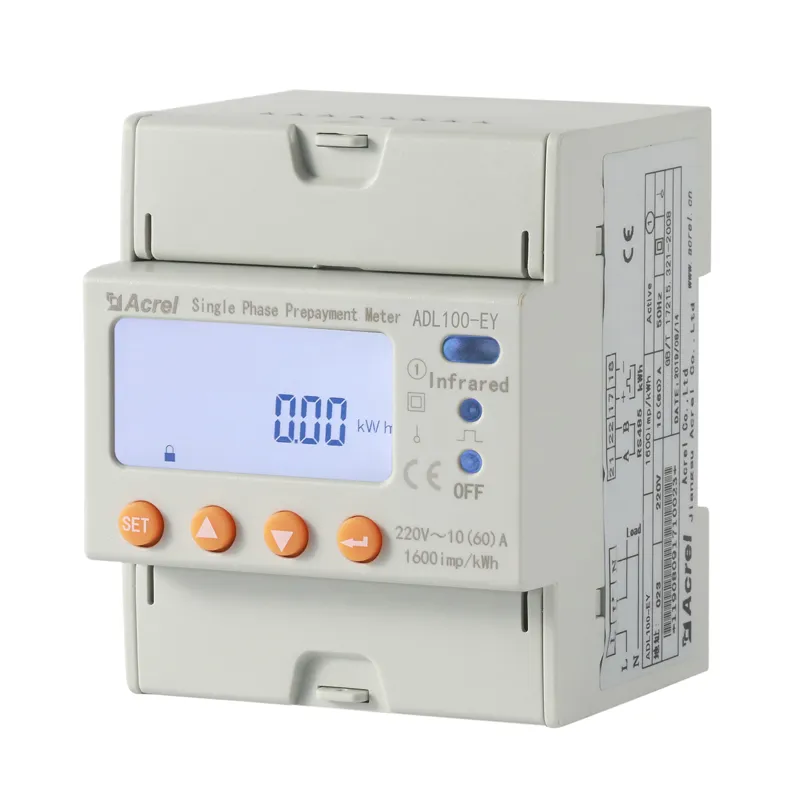

ADL100-EY Single Phase Prepaid Energy Meter

● Rated Current: 10(60)A

● Rated Voltage: AC 220V

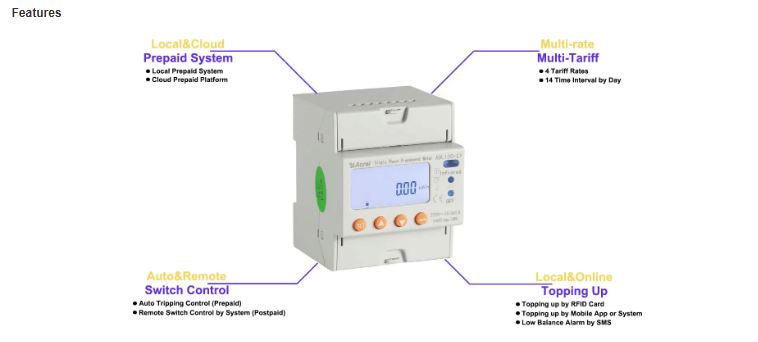

● Prepaid mode: Local & Online Topping Up

● 4 Tariff Rates (Spike, Peak, Valley and Flat kWh Unit Price)

● Auto & Remote Switch Control

● RS485 (MODBUS-RTU) Communication

● 8 digits LCD display; kWh Class 1

● Historical records

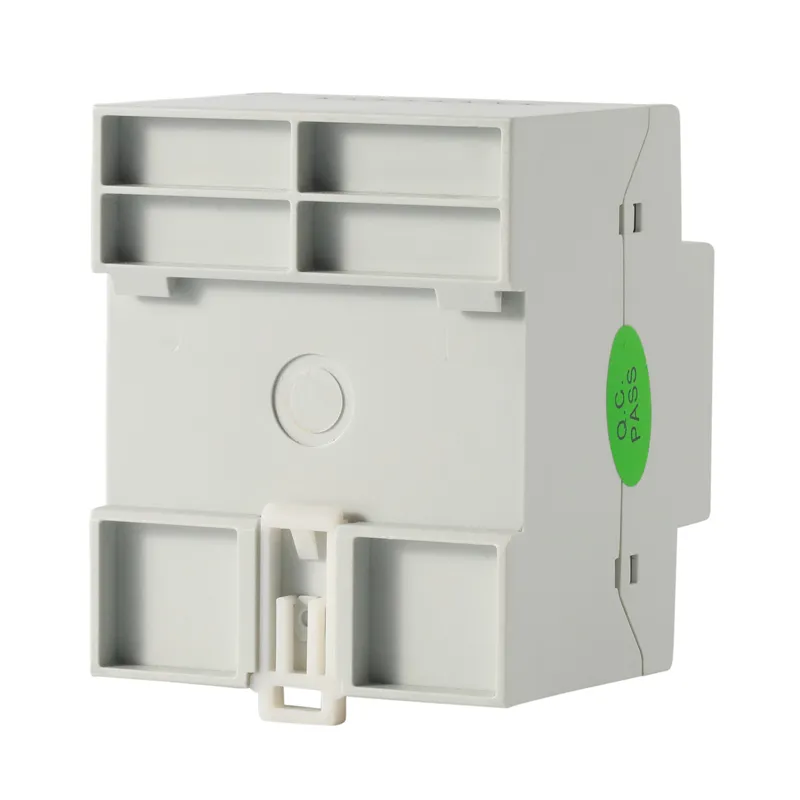

● DIN 35 mm

Product Detail:

General

ADL100-EY single phase pre-paid meters with intro-control is used for calculating the single phase active energy respectively on the frequency of 50 Hz. The meter has functions of pre-paid, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.
