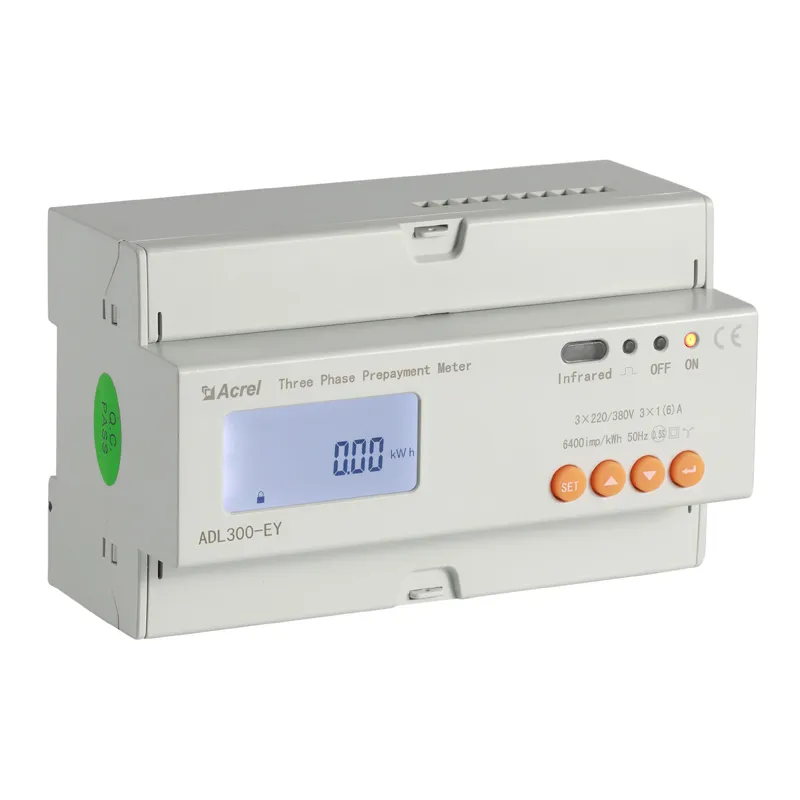

ADL300-EY 3 Phase Prepaid Energy Meter

● Rated Current: 1(6)A,10(80)A

● Rated Voltage: AC 3×220/380V

● Prepaid mode: Local & Online Topping Up

● 4 Tariff Rates (Spike, Peak, Valley and Flat kWh Unit Price)

● Auto & Remote Switch Control

● RS485 (MODBUS-RTU) Communication

● Alarm for dump energy

● 8 digits LCD display; kWh Class 0.5S

● Historical records

● DIN 35 mm

Product Detail:

General

ADL300-EY three phase pre-paid meters with intro-control is used for calculating the three phase active energy respectively on the frequency of 50 Hz. The meter has functions of pre-paid, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.
