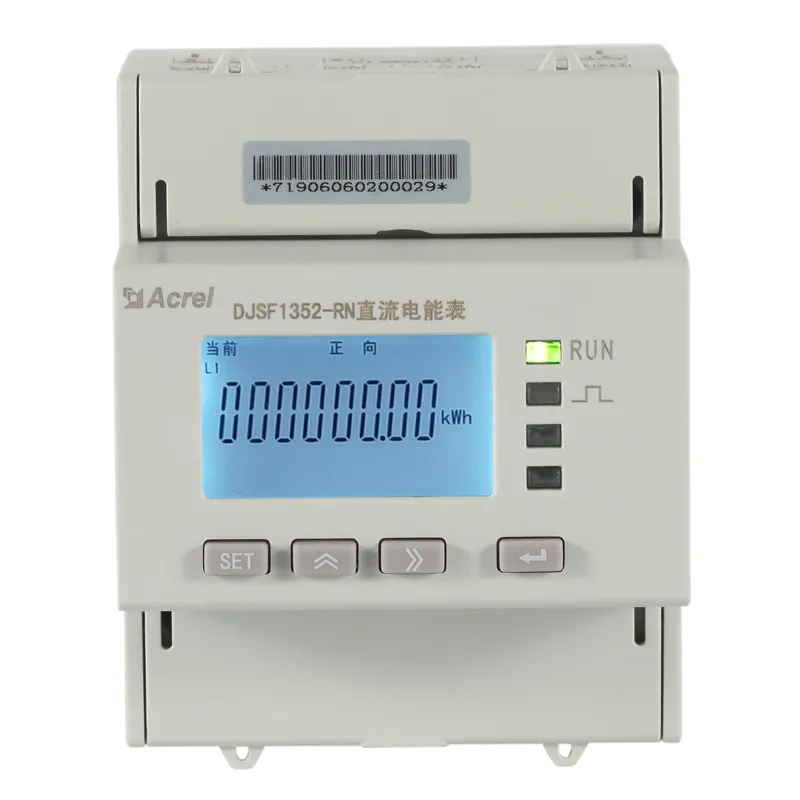

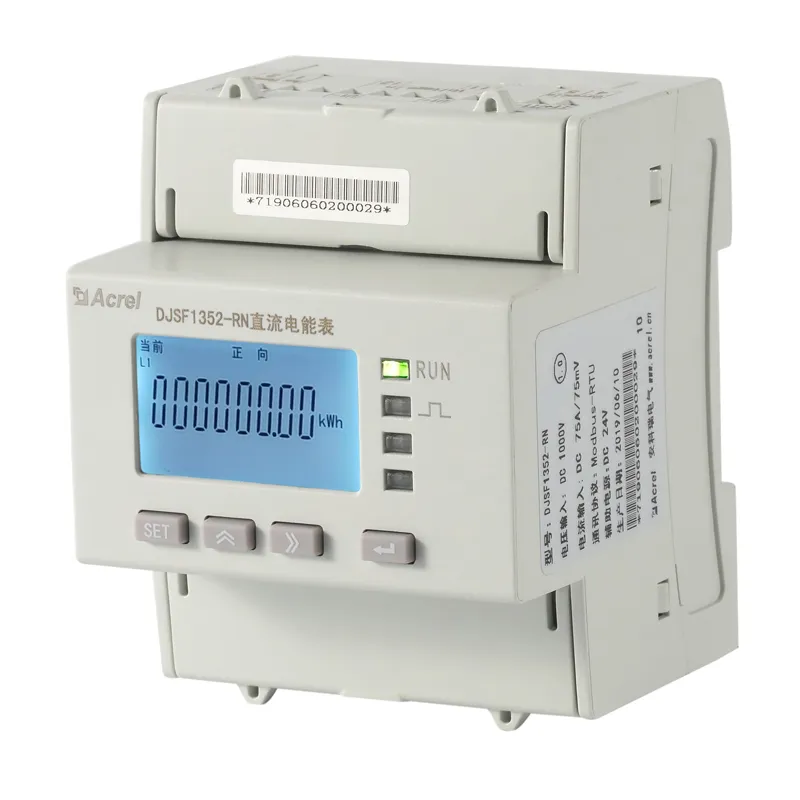

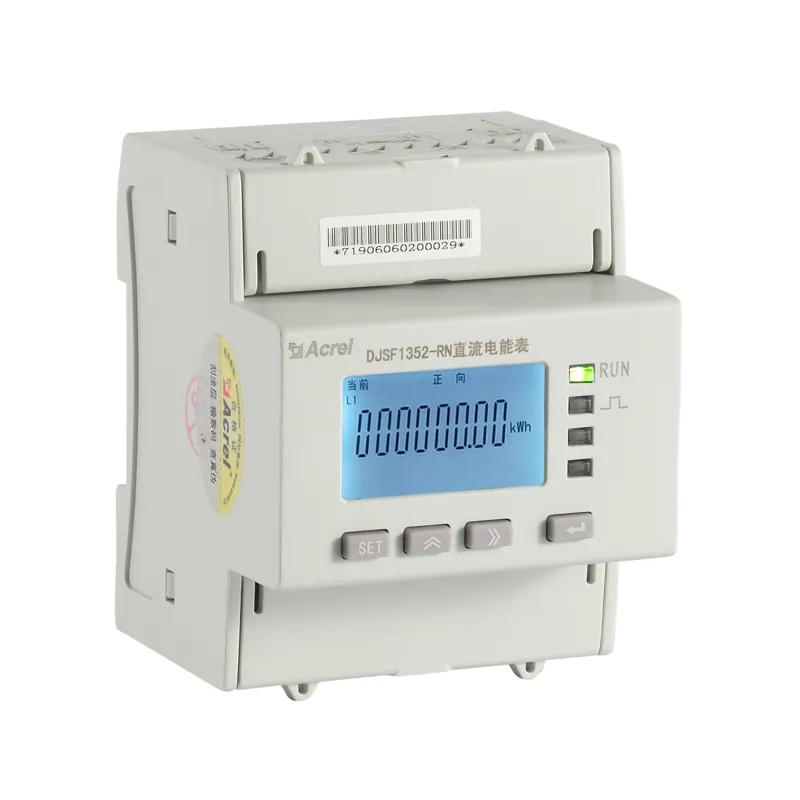

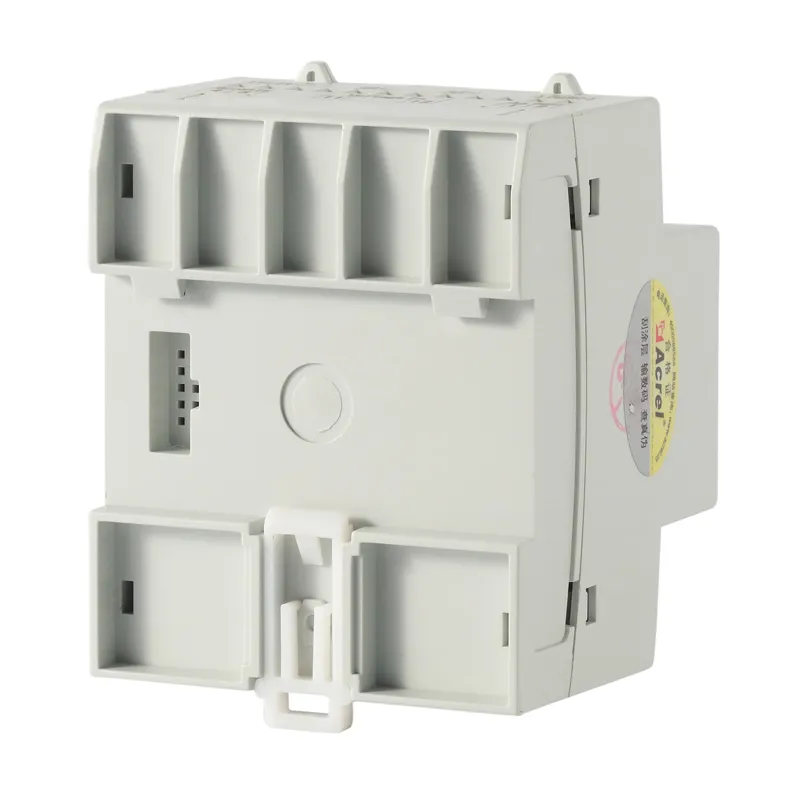

EV Charger Power Meter DJSF1352-RN

● 0~1000V DC Measurement; Class 1; UL Certified

● 8 digitals LCD display; SOE record

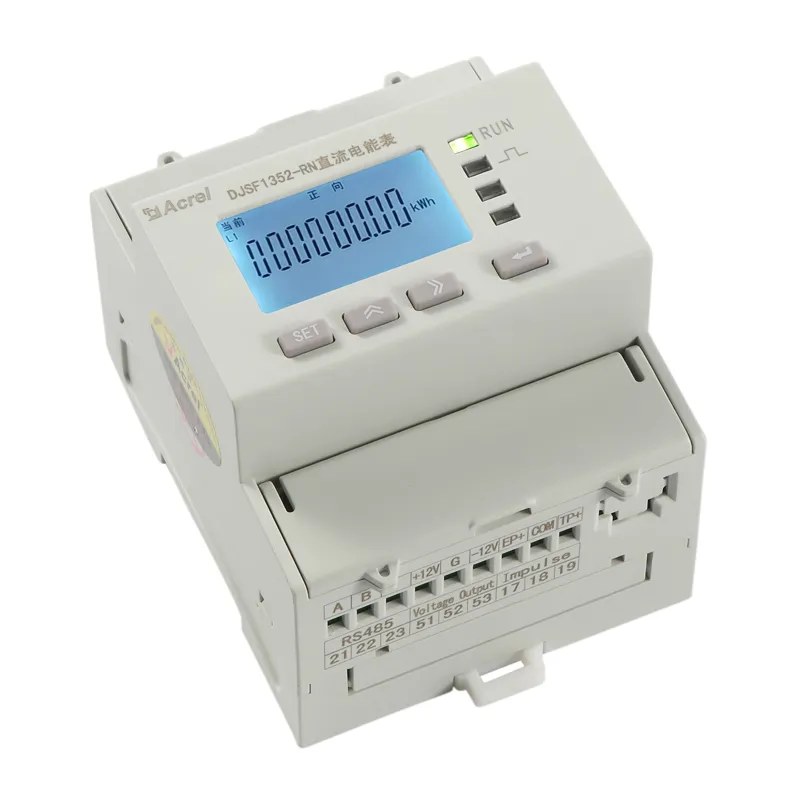

● RS485 communication interface; Supports Modbus-RTU protocol

● Keypads HMI for Programming

● Dual Independent DC Circuits Monitoring

● Relay alarm output and digital input function

● Use matching with hall sensor (0-5V) or shunt (75mV)

● AC/DC85~265V or DC24V/48V power supply

● Set the ratio, alarm, and communication through the meter panel keys according to different requirements

● Event recording of switch (Modbus protocol), programming and event setting records, instantaneous and timing freeze function of data, maximum and minimum value recording function of voltage and current power

Product Detail:

General

DJSF1352-RN rail-mounted DC power meter with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system. The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system.

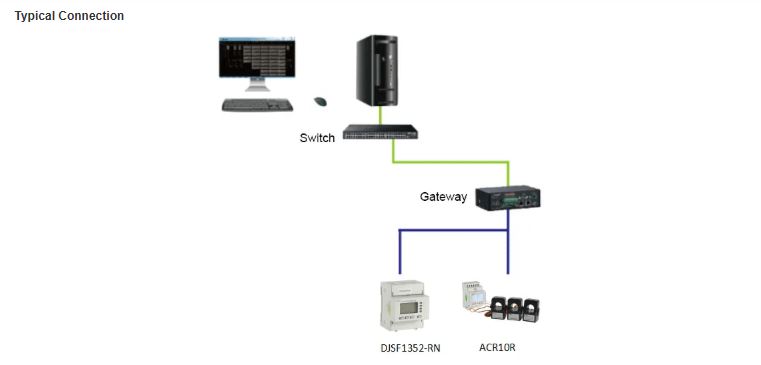

The meter have infrared communication interface and RS485 communication interface, and supports Modbus-RTU protocol and DLT645-97(07) protocol at the same time. The meter have relay alarm output and digital input function. It can set the ratio, alarm and communication through the meter panel keys according to different requirements. The meter have event recording of switch(Modbus protocol), programming and event setting records(645 protocol), instantaneous and timing freeze function of data(645 protocol), maximum and minimum value recording function of voltage and current power.
