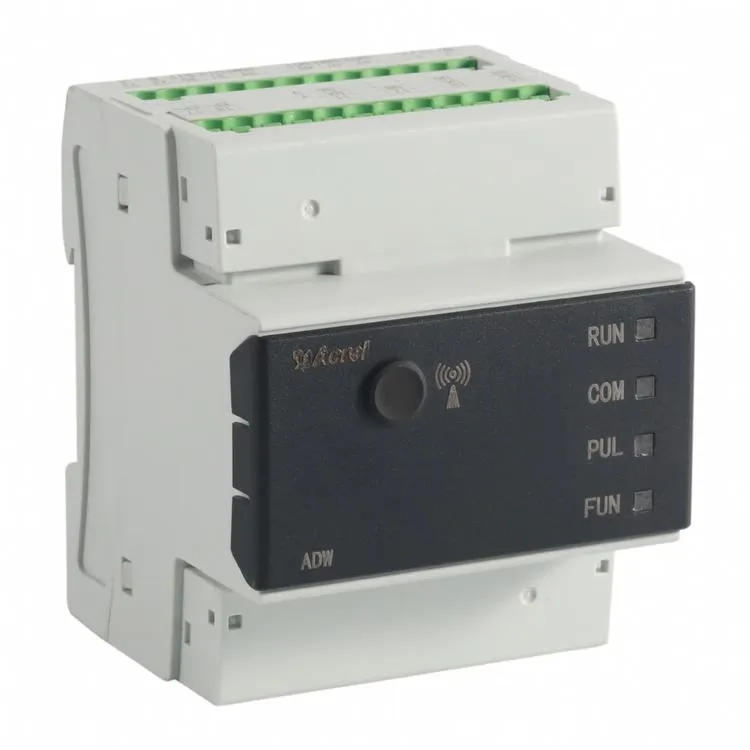

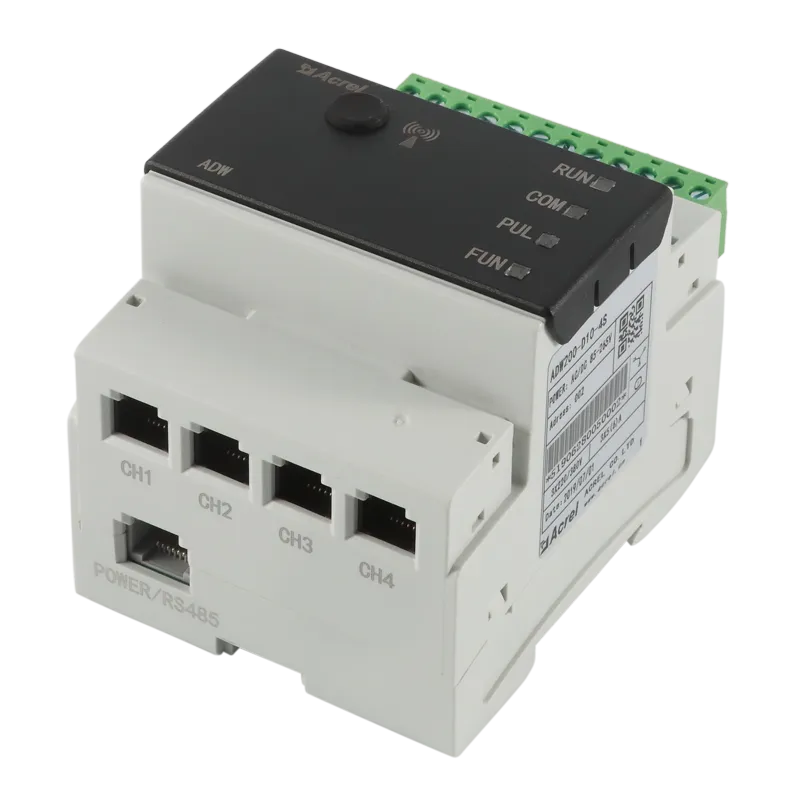

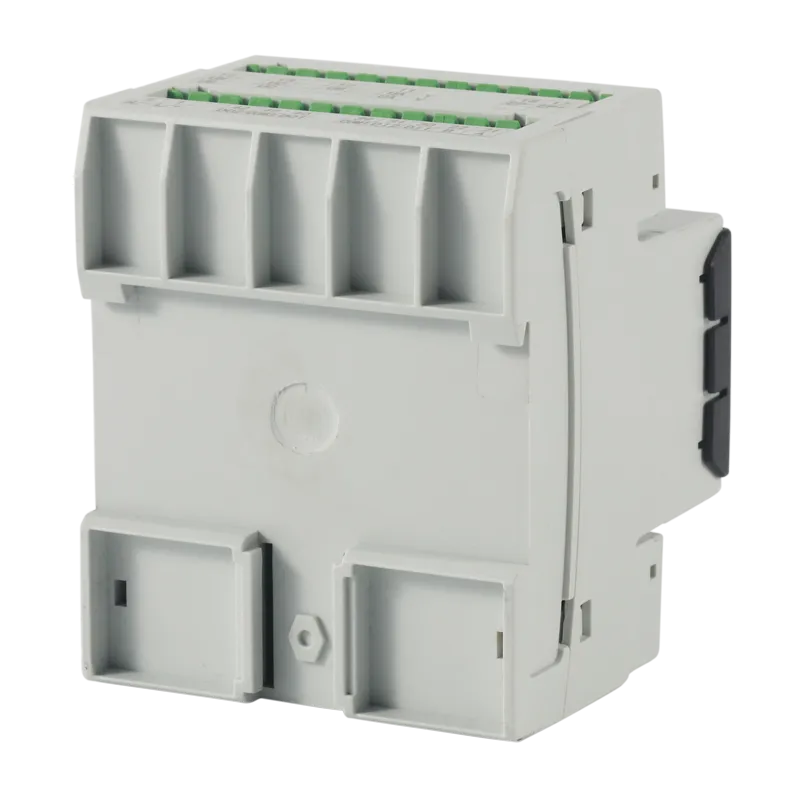

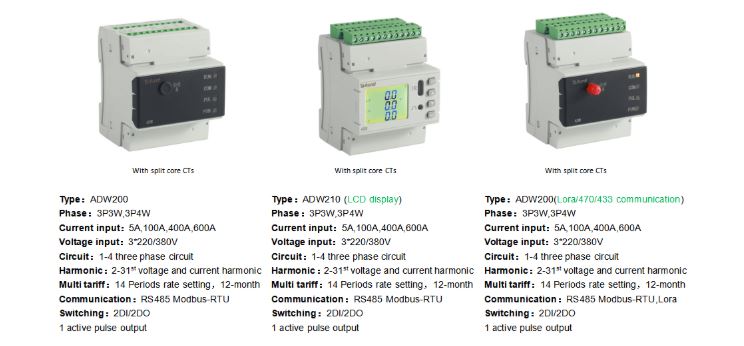

Multi-Channel Wireless Energy Monitor ADW200

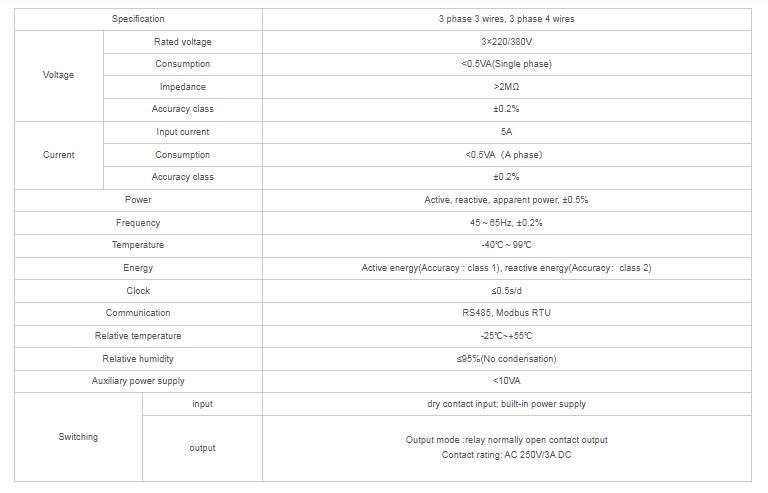

● Rated Current: AC5A, 100A

● Rated Voltage: 3x220V/380V AC (3P4W)

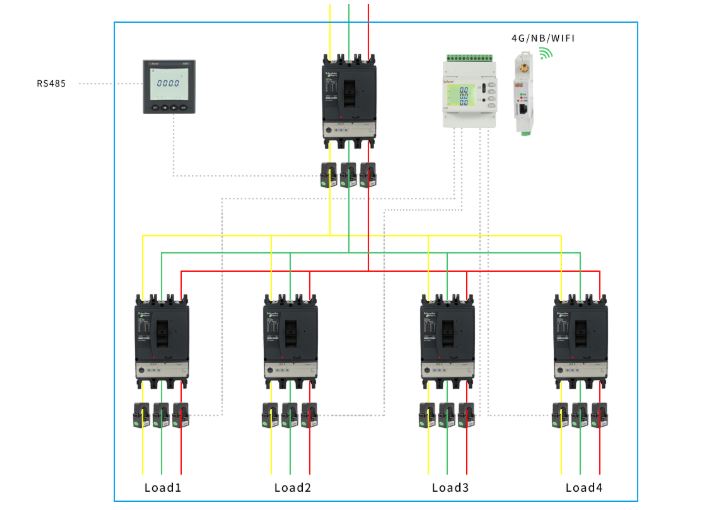

● Measure up to 4 circuit 3 phase

● Measure all electric parameters

● RS485 interface Modbus-RTU communication

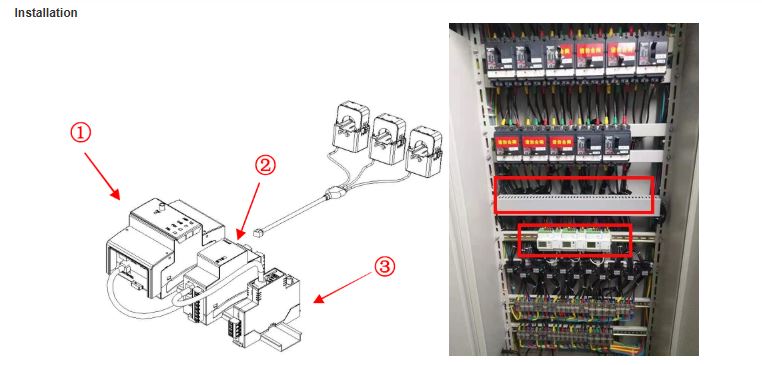

● 35mm DIN Rail Installation

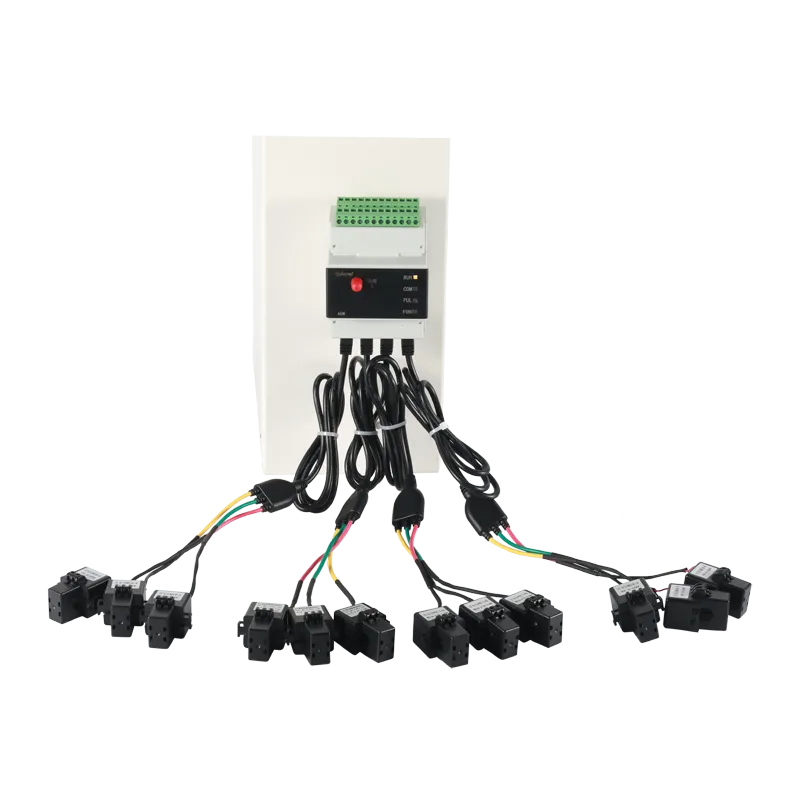

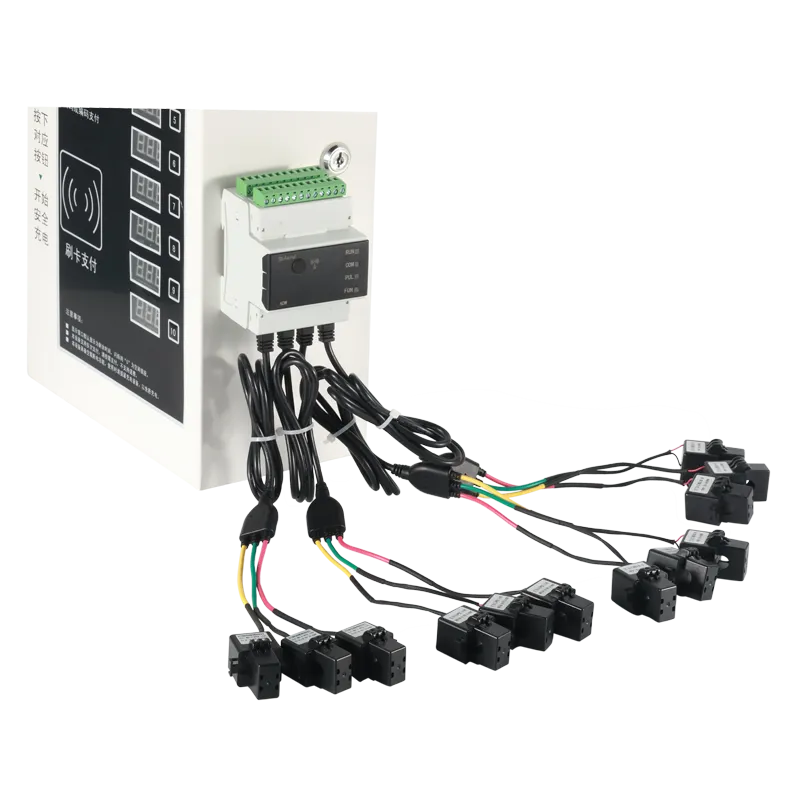

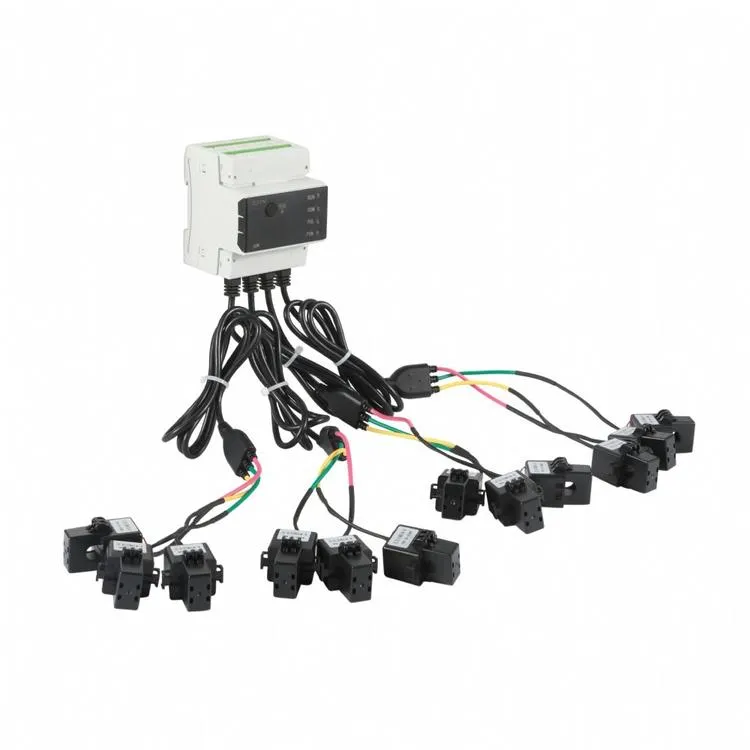

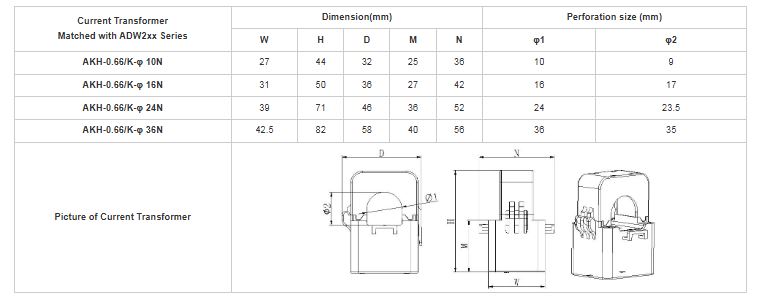

● Split core open loop CTs, 5A / 100A/ 400A / 600A

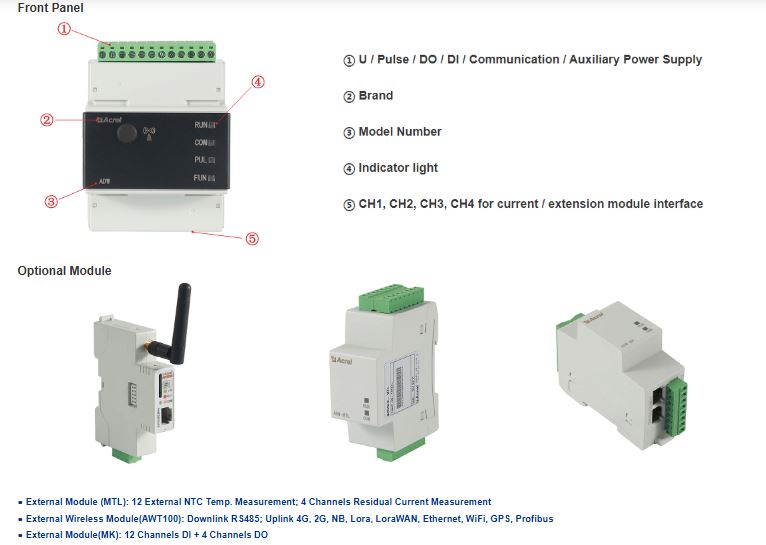

● External function module, such as MK(switching inputs and outputs), MTL(temperature measurement and leakage current measurement), AWT100(wireless communication)

Product Detail:

General

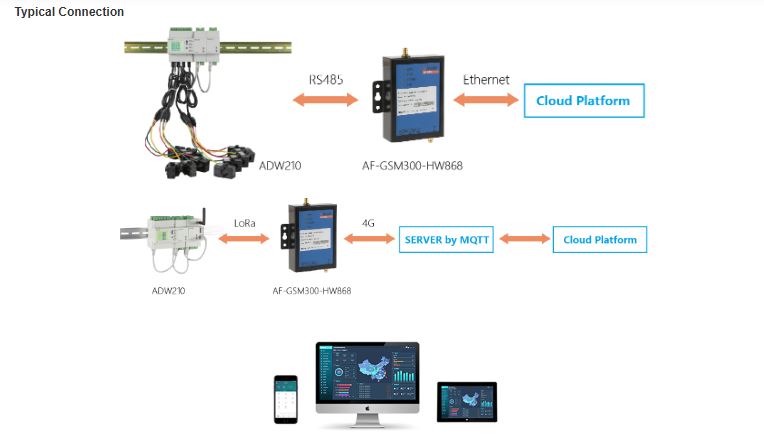

ADW200 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit. Colleagues can select the current input of the maximum four circuits. ADW2XX series products are connected by split core current transformer, easy to install on site, and realize remote wireless communication through wireless communication module.
