Single Phase Din Rail Energy Meter ADL200

● Rated Voltage: AC220V
● Rated Current: 10(80)A

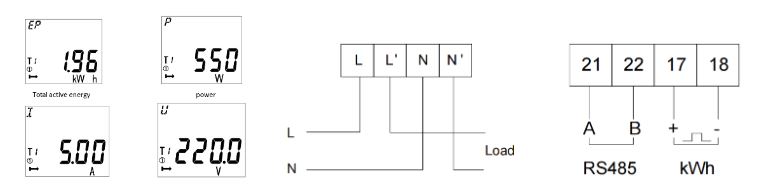

● RS485(MODBUS-RTU) Communication

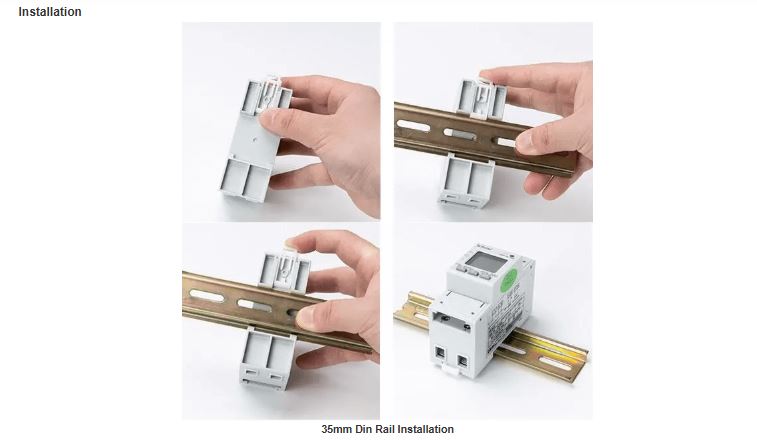

● LCD Display; 35mm DIN Rail Installation

● Multi-tariff: 4 Tariff Rates (Spike, Peak, Valley and Flat kWh)

● MID Certified
● Set parameters
● kWh Class 1

Product Detail:

General

ADL200 single phase din rail electric kWh energy meter is designed for single phase active energy measurement on low voltage system, in the same time it can measure the electrical parameters like voltage, current, power and so on. There is also RS485 communication can be chosen.

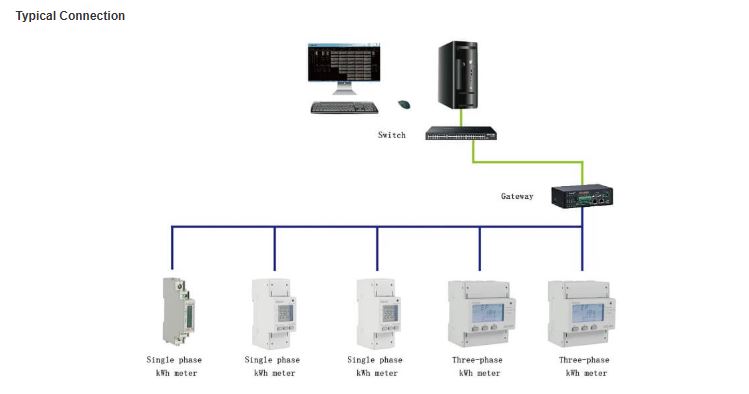

LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration.

This power meter has advantages of smaller volume, high precision, good EMC, easily installing etc. All meters meet the related technical requirements of electronic power meter in the IEC62053-21、IEC62053-22 standards.
