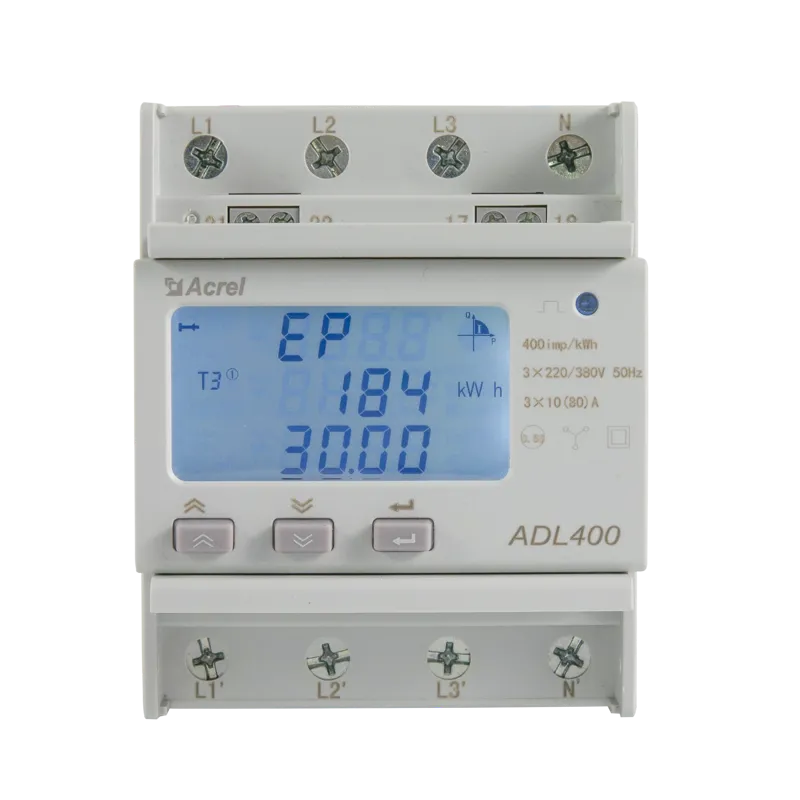

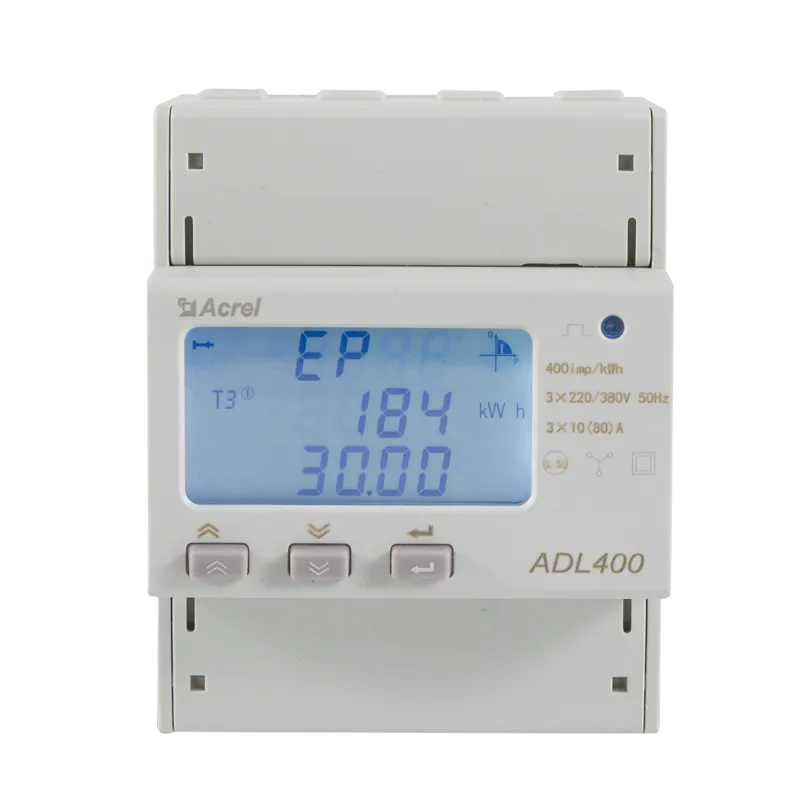

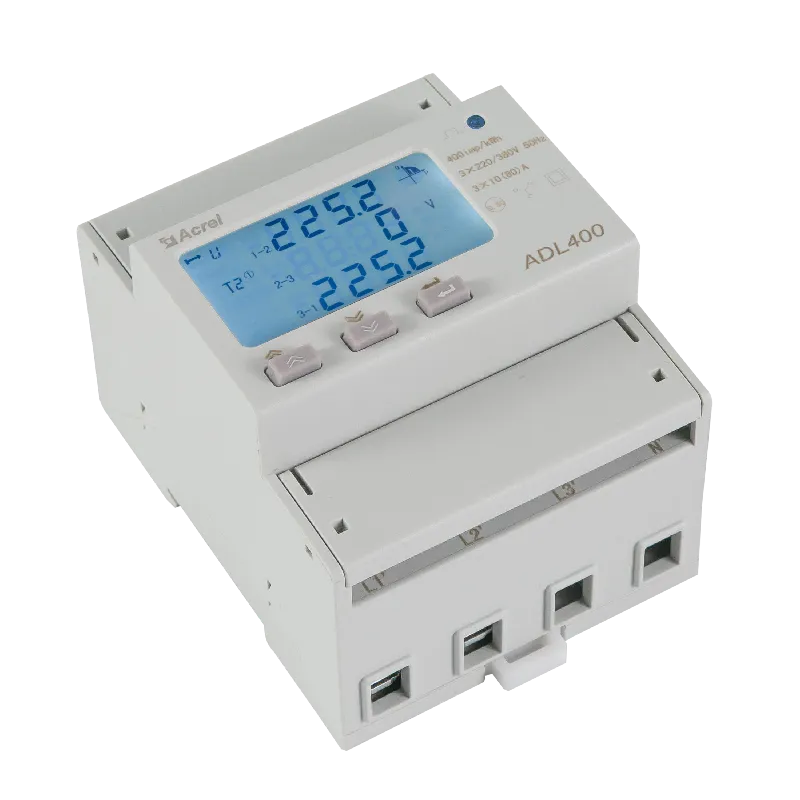

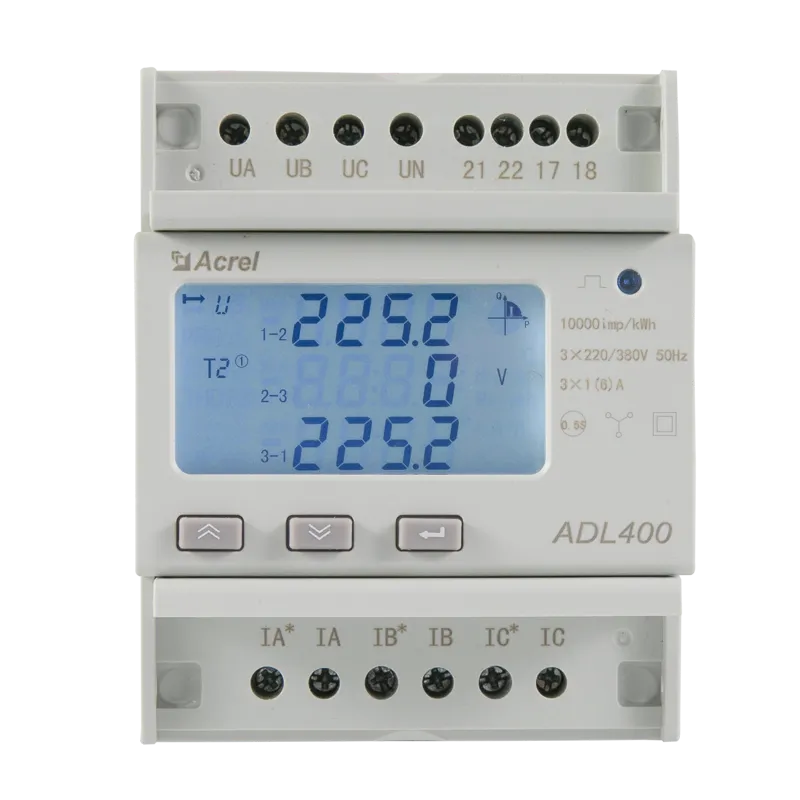

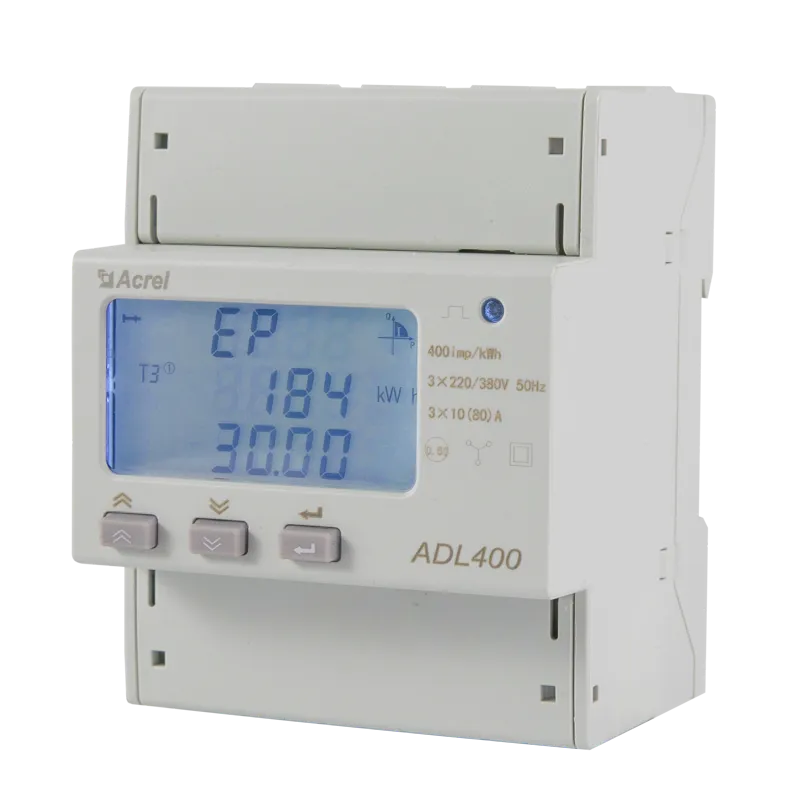

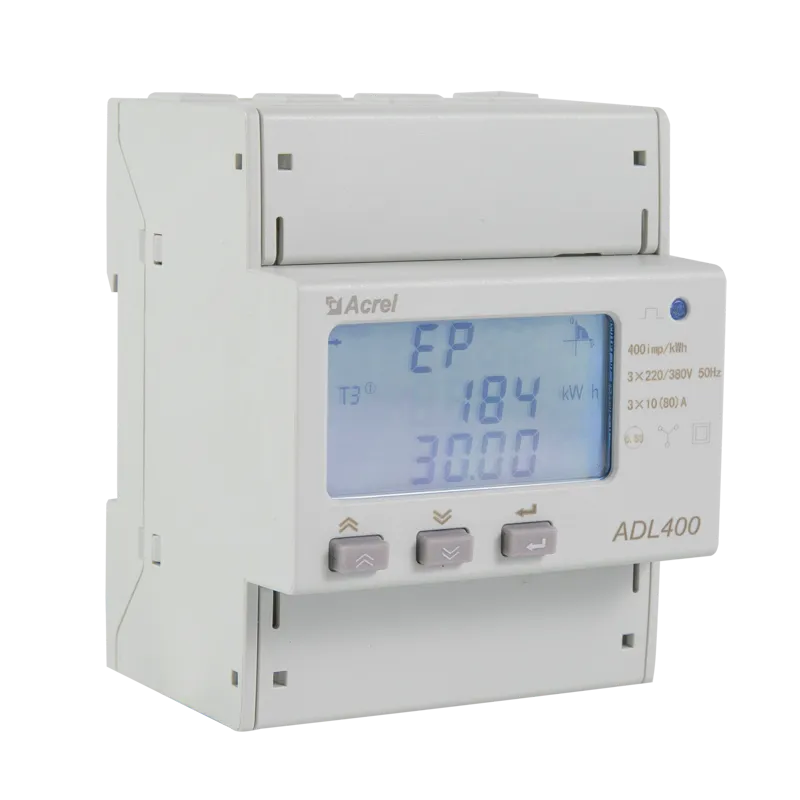

Three Phase Din Rail Energy Meter ADL400

● Rated Current: 1 (6) A, 10 (80) A

● Rated Voltage: AC220V/380V, AC230V/400V
● RS485(MODBUS-RTU) Communication

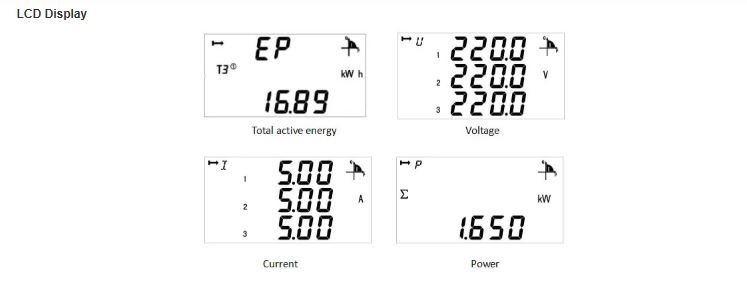

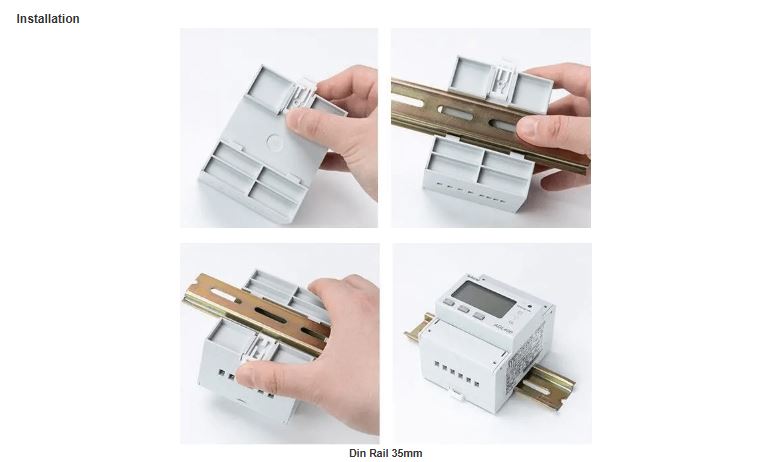

● 12 digits LCD Display; 35mm DIN Rail Installation

● Multi-tariff: 4 Tariff Rates (Spike, Peak, Valley and Flat kWh)

● 2~31st Harmonic Measurement

● MID Certified
● Set parameters
● kWh Class 0.5S

Product Detail:

General

ADL400 three phase din rail electric meter is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features LCD display, high precision, small size and simple installation.

It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 48 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output.

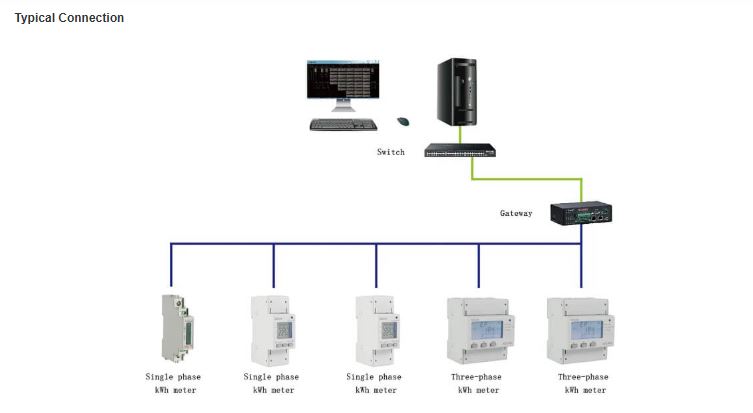

It is fitted with RS485 communication port and adapted to MODBUS-RTU protocol. ADL400 can be used in all kinds of control systems, SCADA system and energy management system (EMS). The meter meets the related technical requirements of electronic meter in the IEC62053-21standards.
