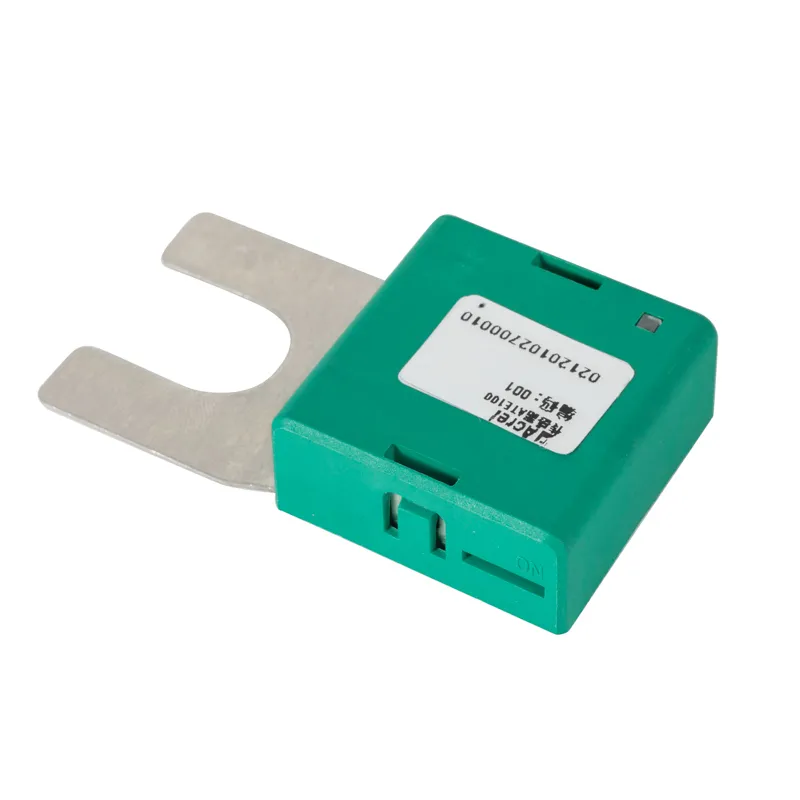

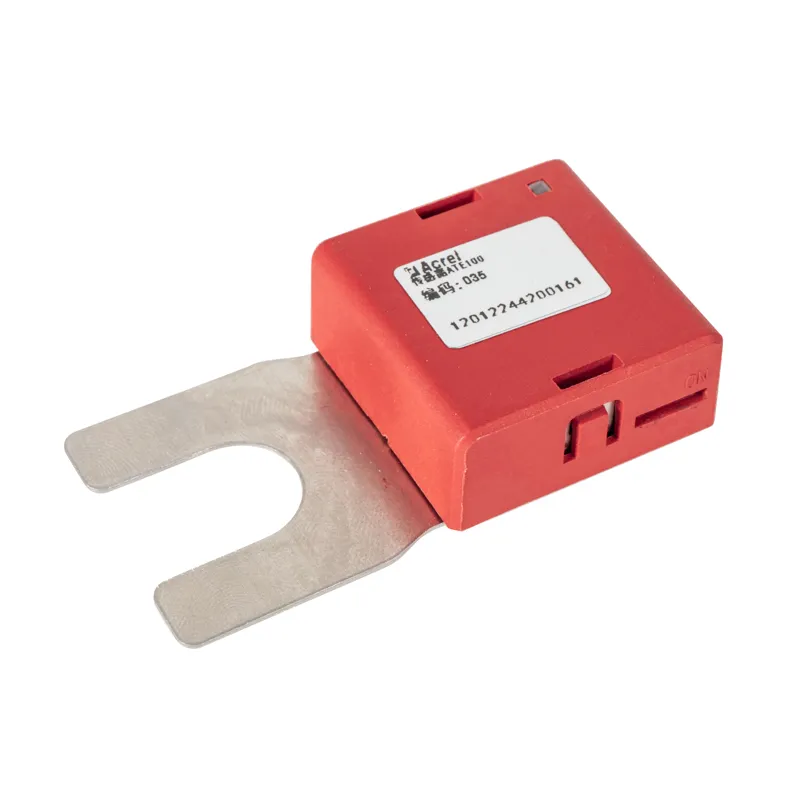

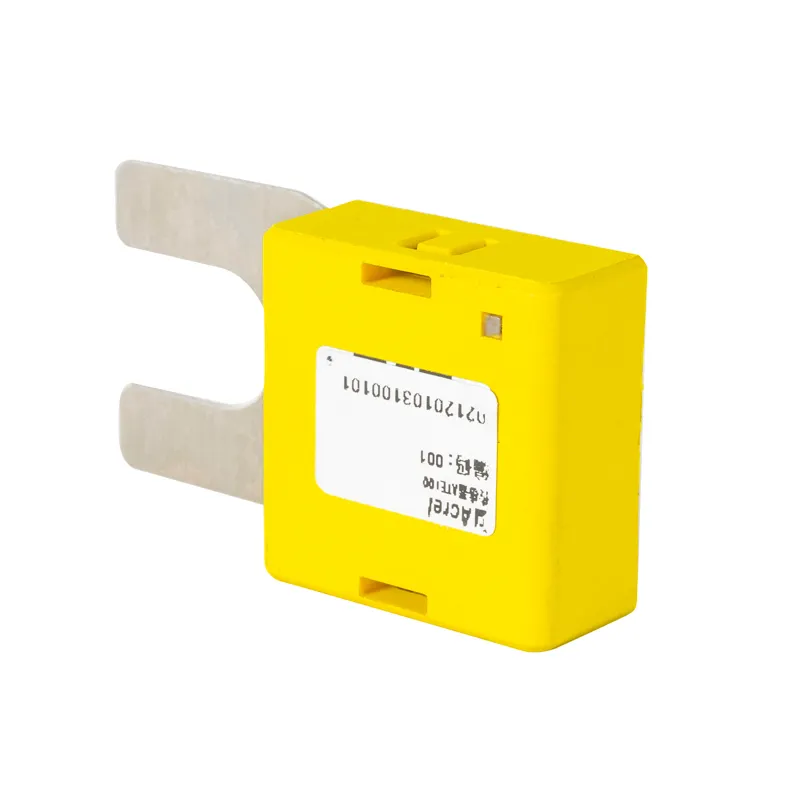

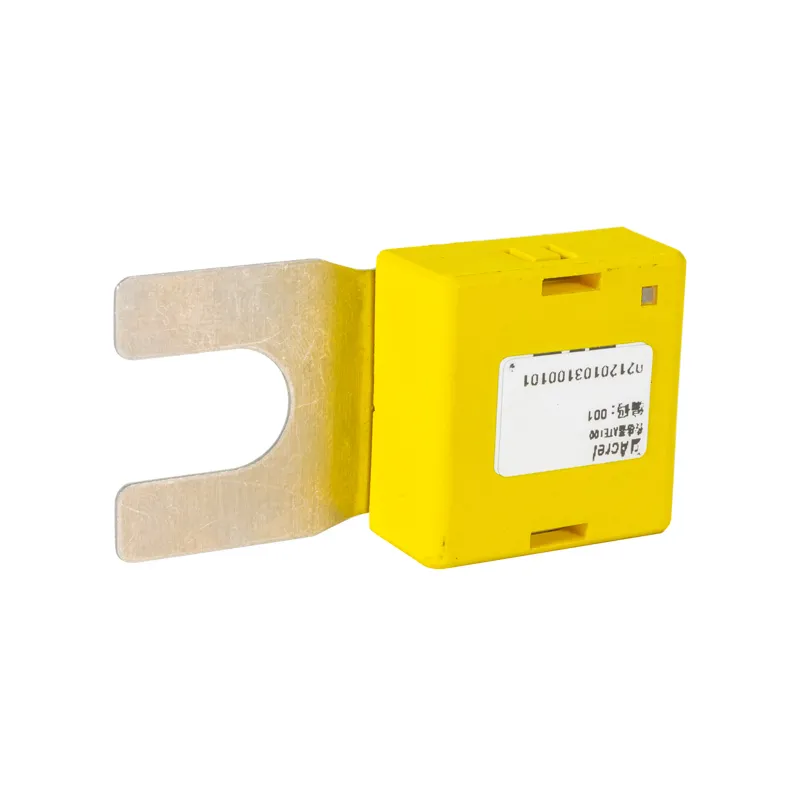

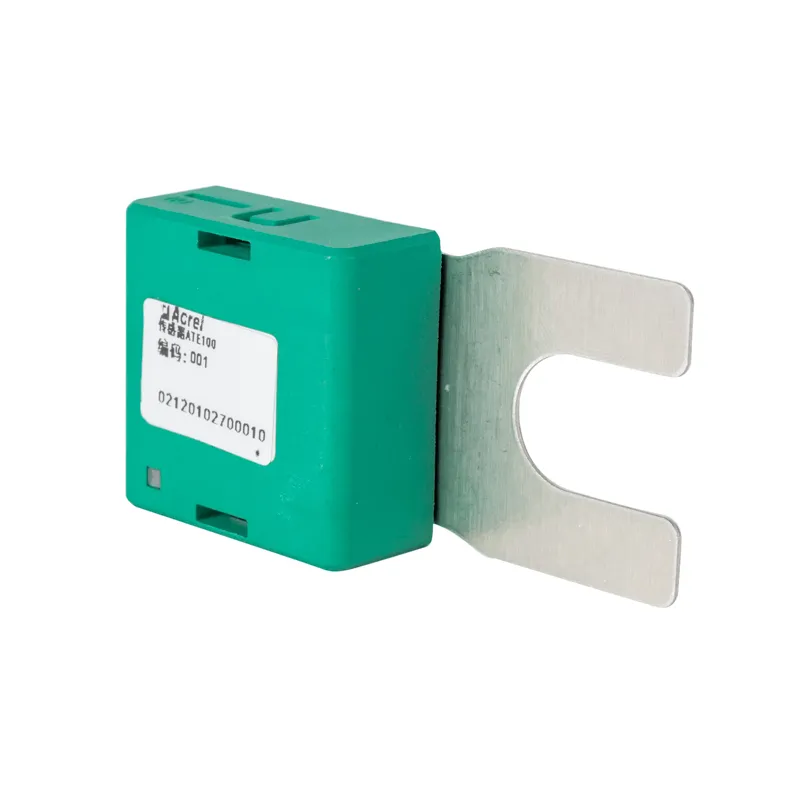

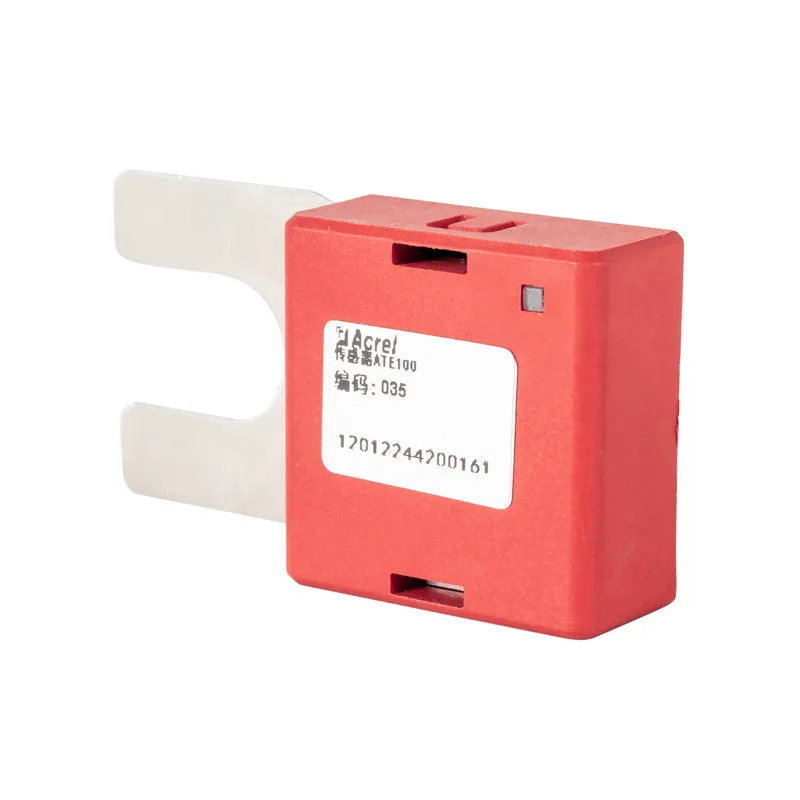

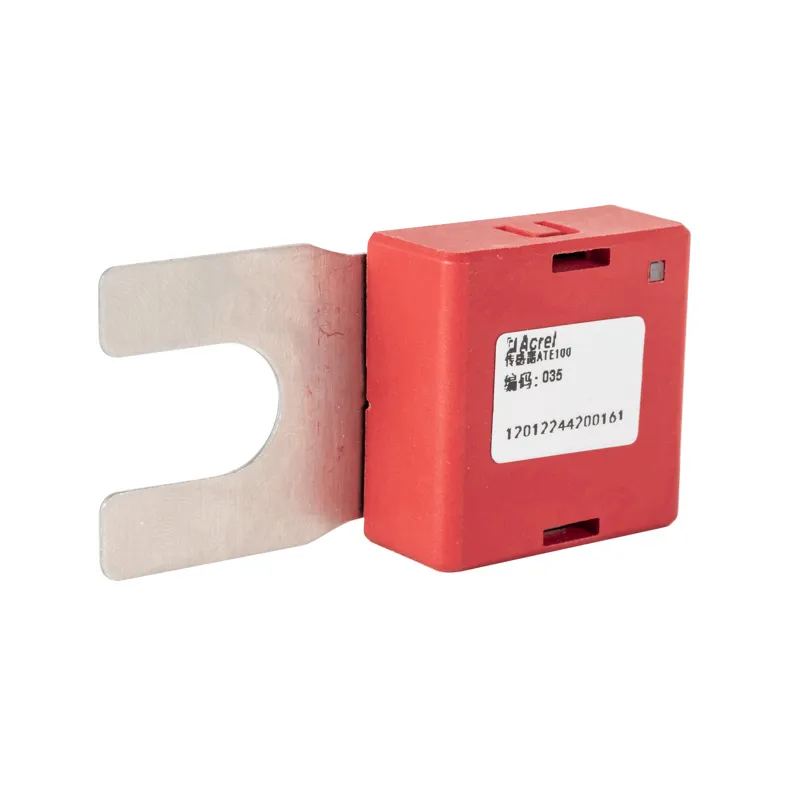

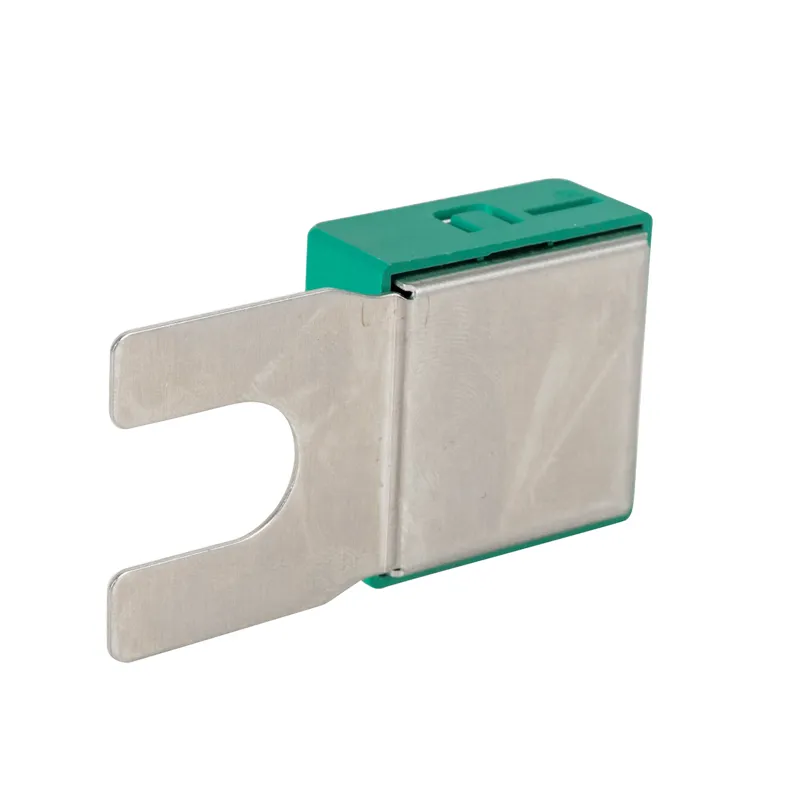

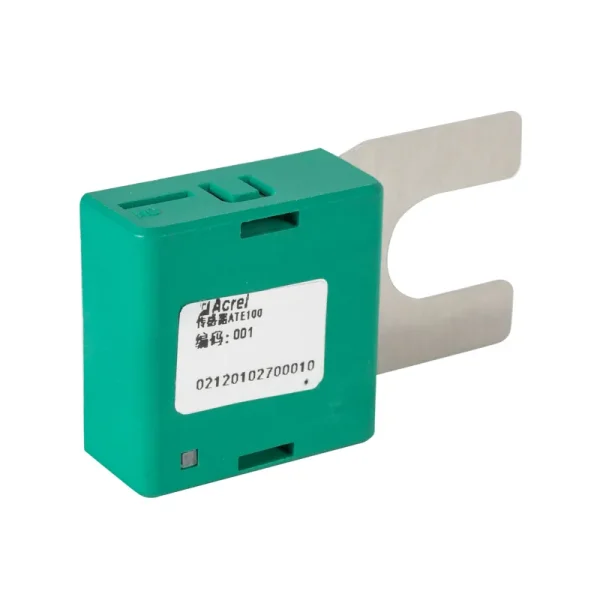

Bolted Wireless Temperature Sensor ATE100

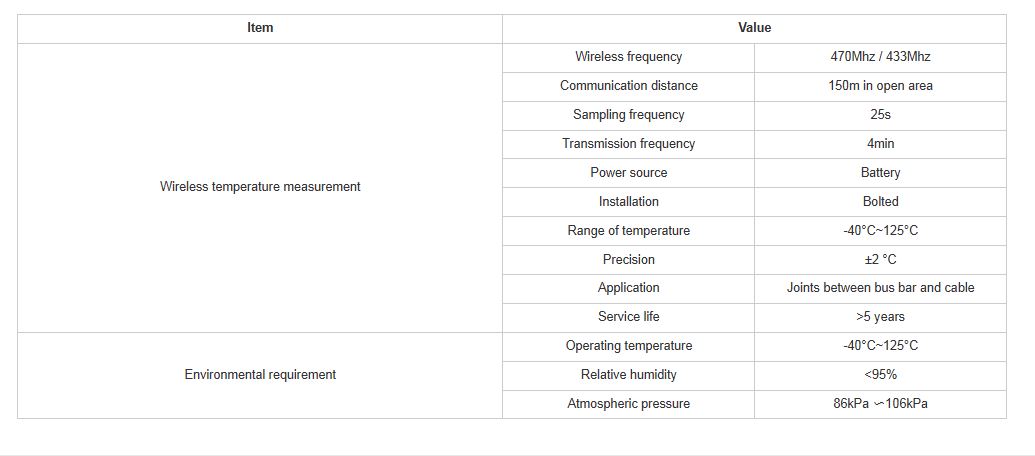

● Wireless transmit, 470Mhz / 433Mhz;

● Wireless transmission distance, 150 meters;

● Fast sampling frequency, 25s;

● Battery-powered, more than 5 years;

● Widely temperature measuring range, -50℃~+125℃.

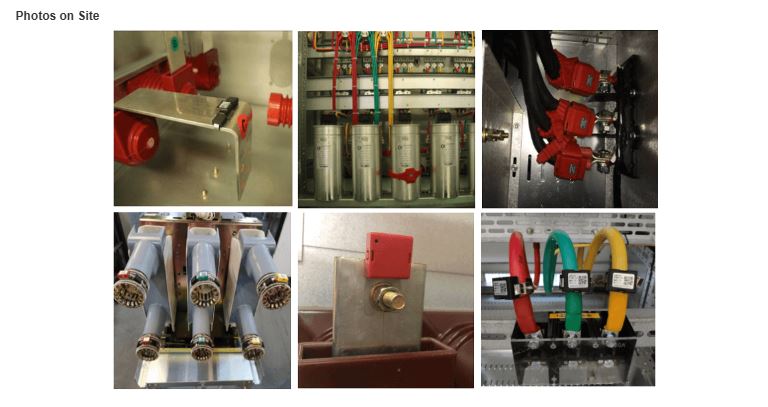

● Application: Switchgear, Busbar, Bus duct, Electric contact, Cable joint, Rain main unit and etc.

Product Detail:

General

ATE100 wireless temperature sensor has been developed in compliance with specification for wireless temperature measuring equipment, NB/T 42086-2016. It is suitable for the outlet of bus bar and the overlap of cable. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.
