Motor Circuit Protector ARD2F

● U, I, P, S, PF, F, EP, Leakage, PTC/NTC

● 16 protect function
● Start control function
● 9 programmable DI
● 5 programmable DO
● Modbus-RTU or Profibus-DP communication
● 1 DC4-20mA analog output
● 20 fault record
● Anti-shaking function

Product Detail:

General

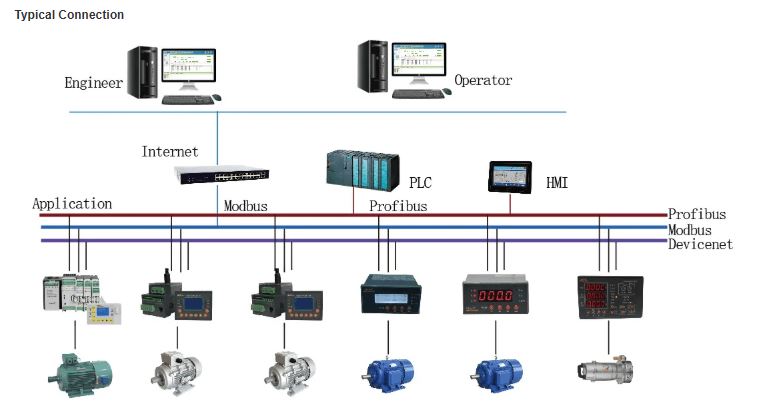

ARD2F smart motor protectors can protect motors from many faults during the motor running and display the running state clearly and intuitively through LCD.The protector has RS485 remote communication interface and DC4-20mA analog output, which is convenient to form a network system together with control machines like PLC and PC.

● Accuracy: Class 1.5
● Frequency Range: 45-65Hz
● Auxiliary power supply: AC85V~265V/DC100V~350V
● Record 8 fault messages
● Main body: DIN 35mm

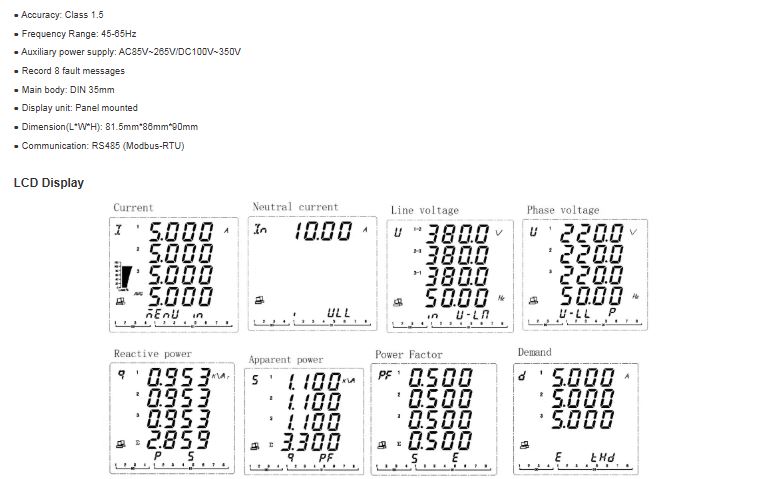

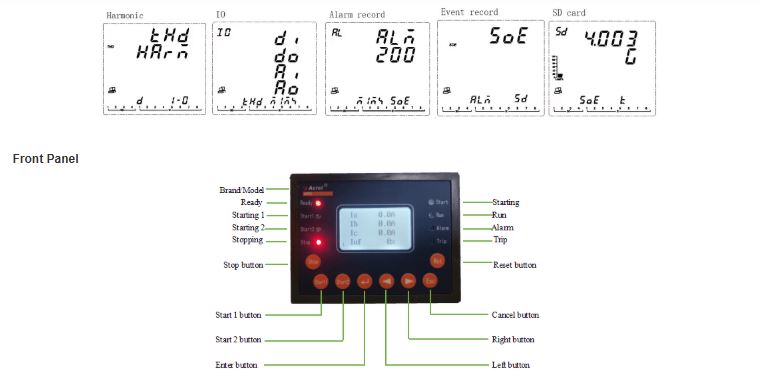

● Display unit: Panel mounted

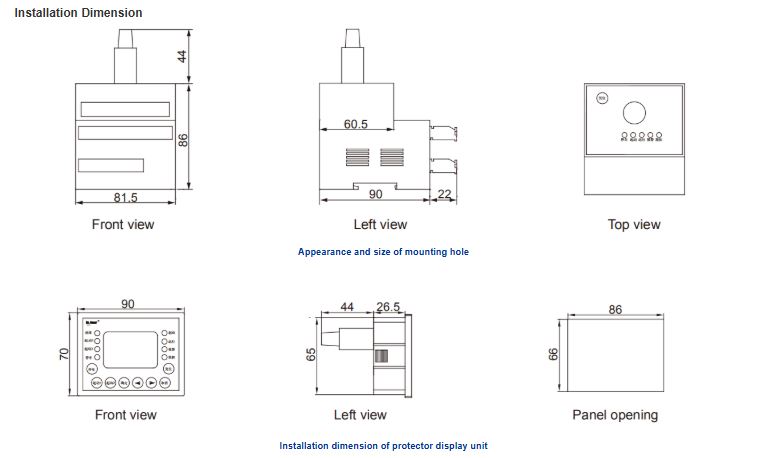

● Dimension(L*W*H): 81.5mm*86mm*90mm

● Communication: RS485 (Modbus-RTU)
