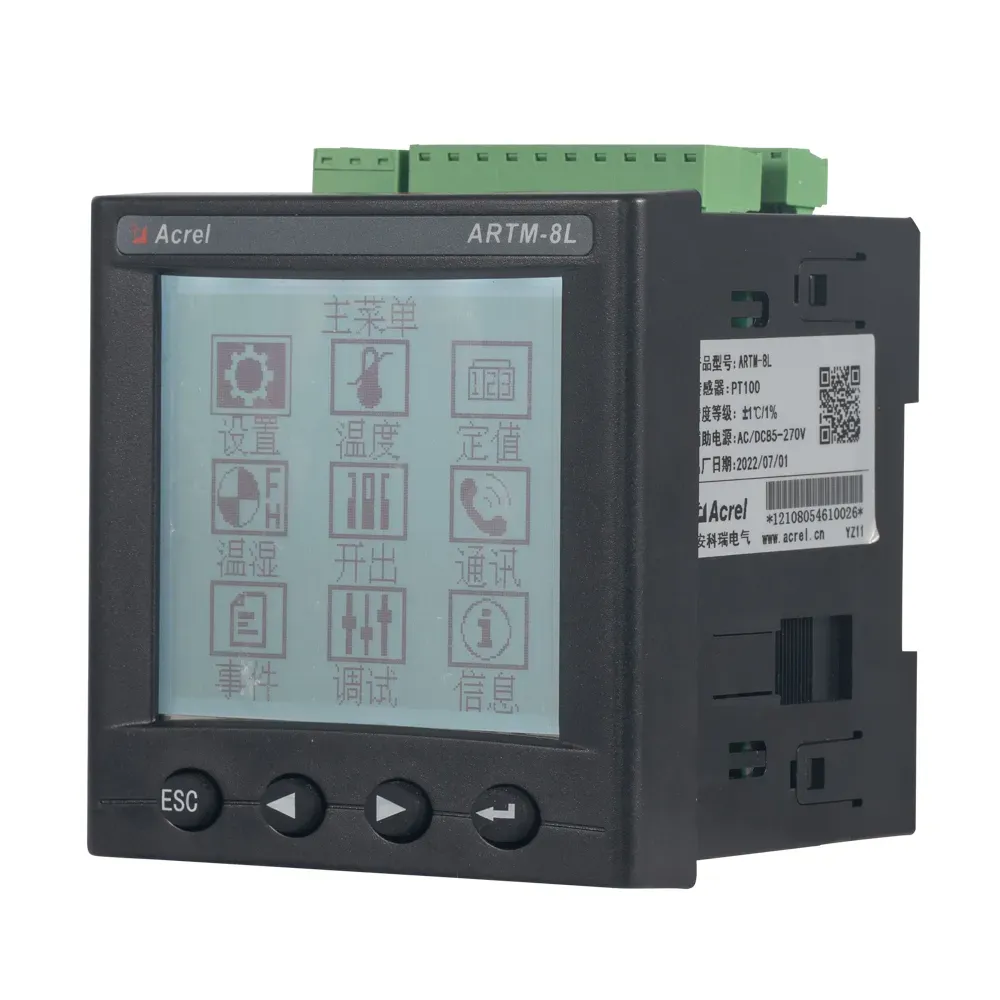

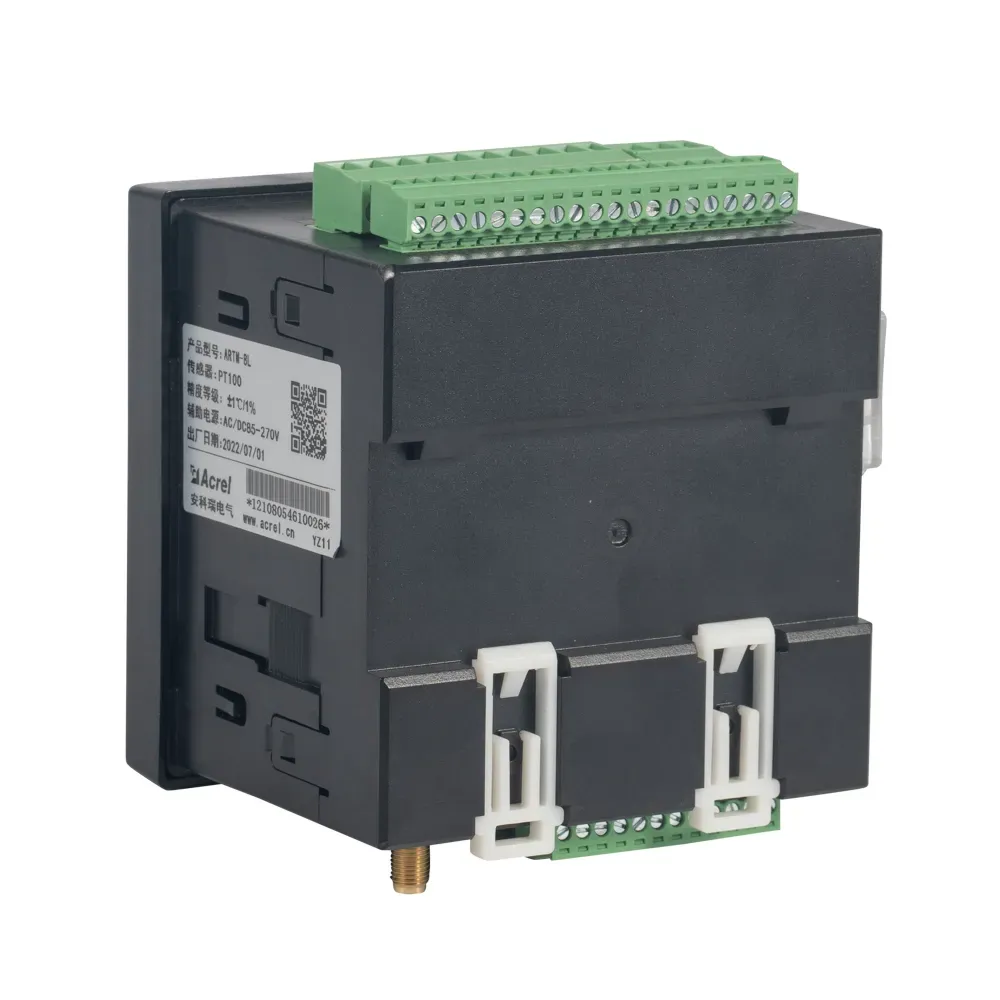

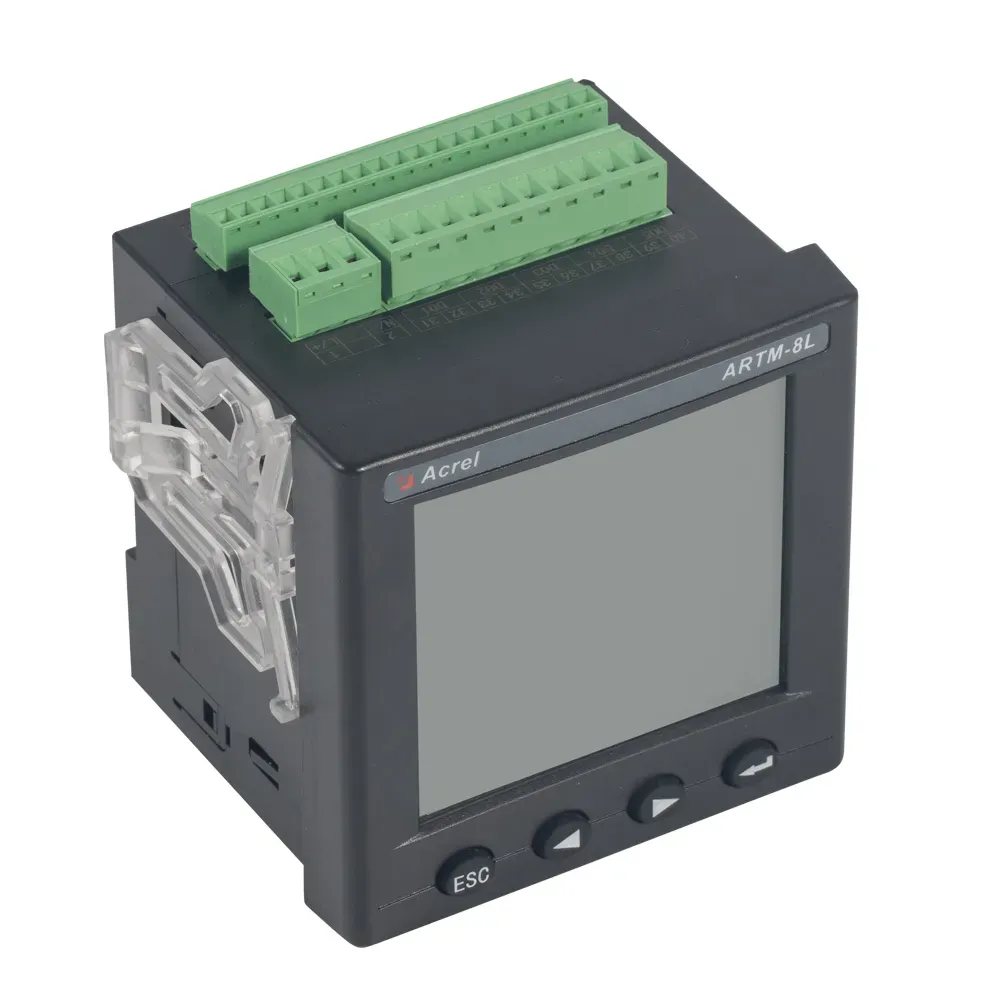

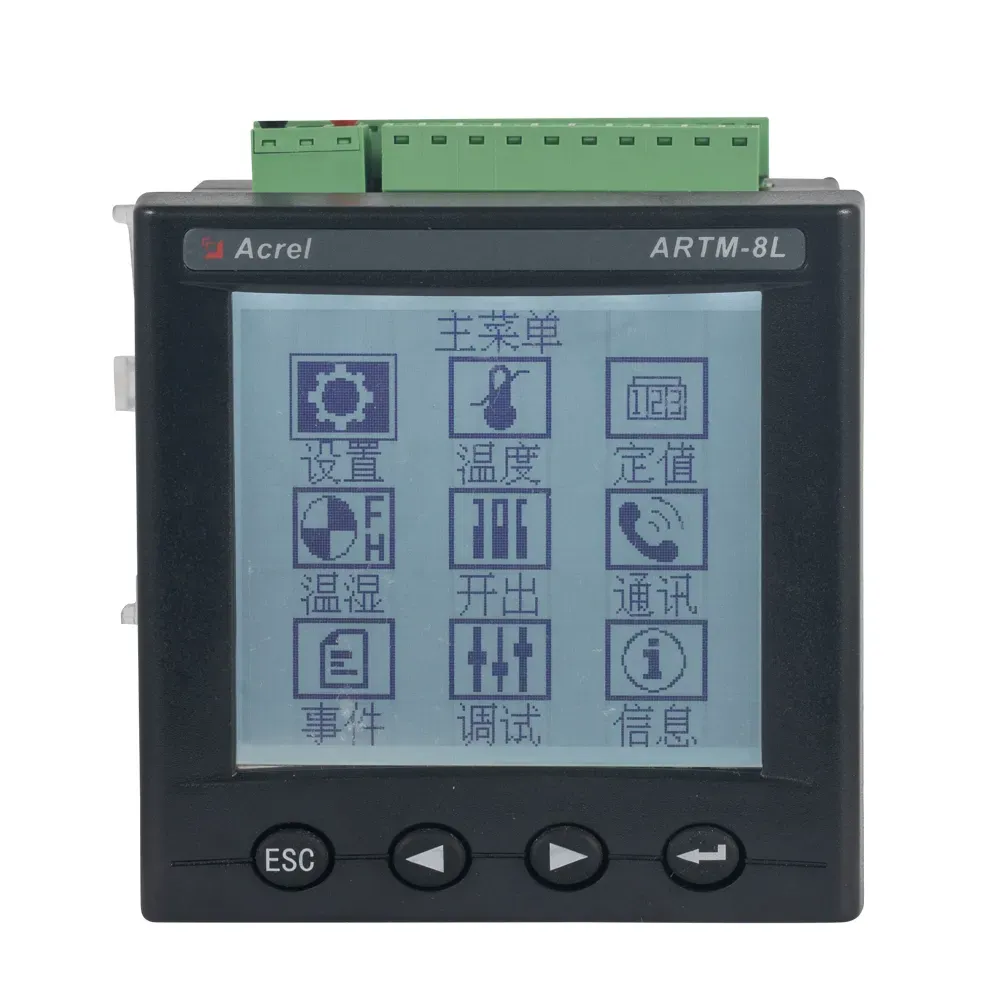

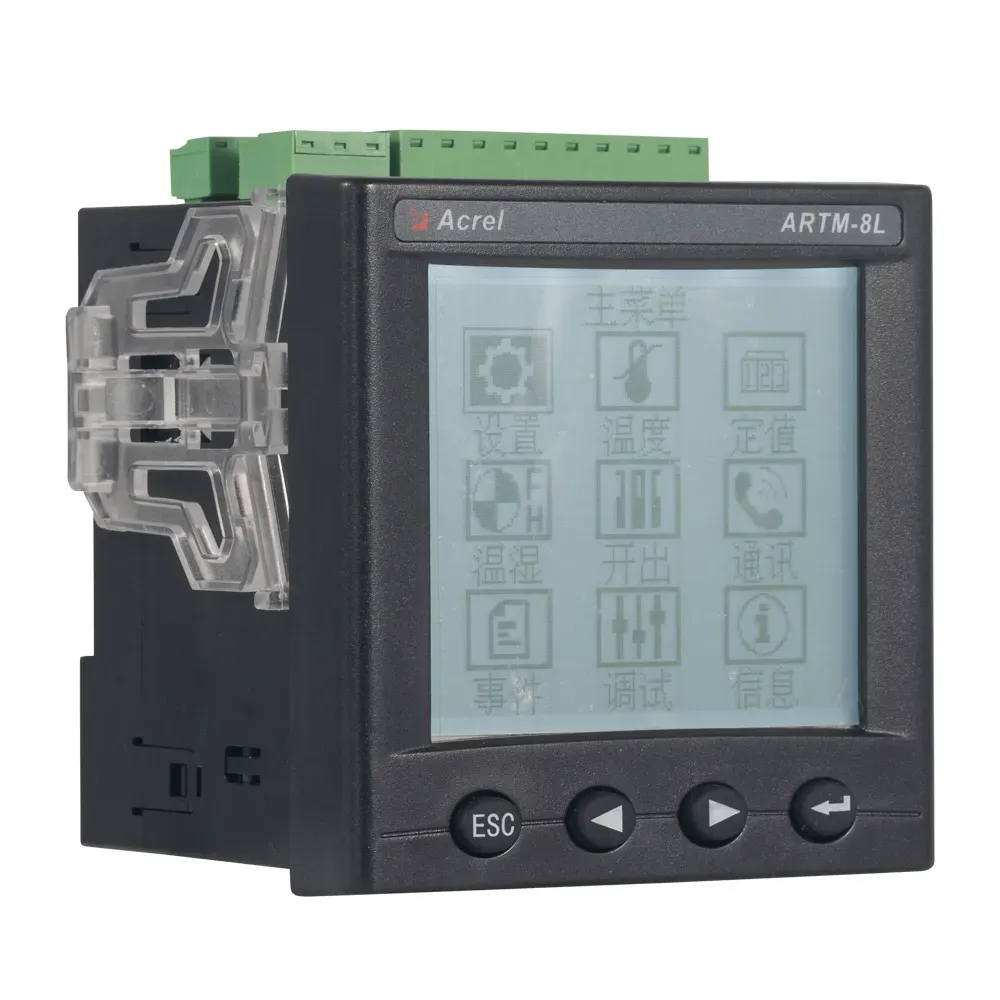

PT100 Temperature Measuring Device ARTM-8L

● 8 Channels PT100/PT1000/NTC thermocouple sensor Temperature Measuring

● Accuracy: NTC: ±1℃; PT100/PT1000: -200℃~200℃, ±1℃; +200℃~850℃, ±1%; Thermocouple: 1%; 0~5V: 0.5%

● Power supply: AC85~265V/DC100-300V

● 5 Channels Alarm output, 3 Channel 4-20mA alalog output

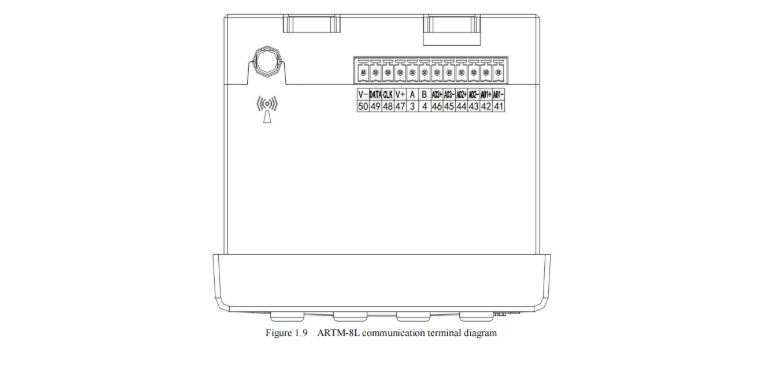

● RS485, Modbus-RTU protocol

● Application: temperature measurement of low voltage electrical contact, transformer winding, motor winding and other places

Product Detail:

General

ARTM-8L temperature inspection instrument can be connected to NTC, PT100 / PT1000, thermocouple sensor, 0~5V input. It is mainly suitable for temperature measurement and control of multiple channels, and applied to temperature measurement of low voltage electrical contact, transformer winding, motor winding and other places.
