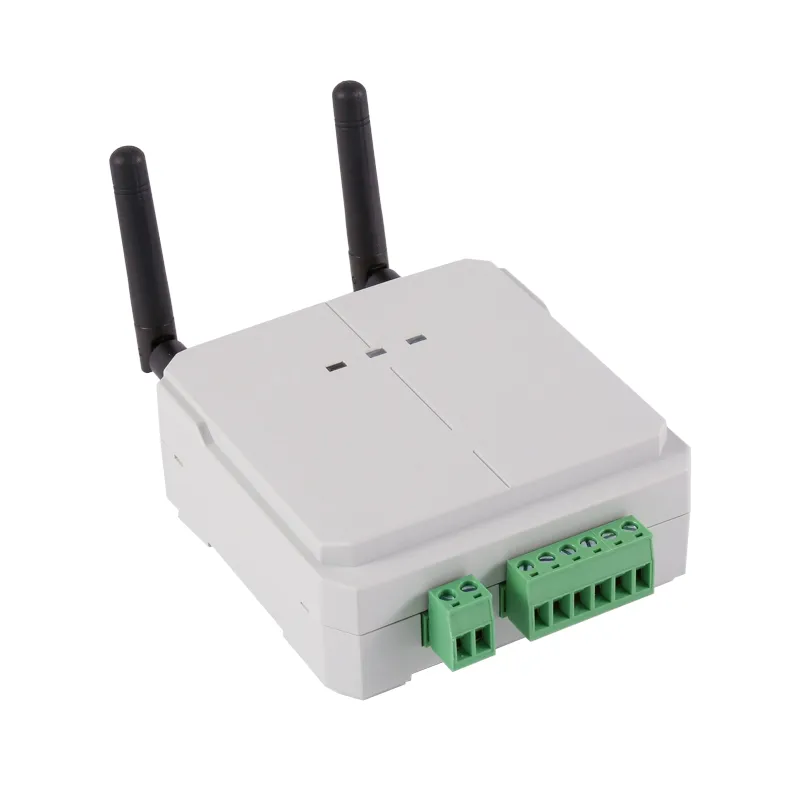

Wireless Temperature Transceiver ATC600

● Model: ATC600 Temperature Data Transceiver

● Wireless transmit, 470Mhz / 433Mhz;

● Wireless distance, Receiver sensor 150m (in open area), Relay distance 1Km (in open area);

● Measuring 240 points of ATE Temperature Sensors;

● Power supply, AC/DC100~256V;

● Relay output, 2 passive output, capacity 5A/AC250V, 5A/DC30V;

● RS485(MODBUS-RTU) Communication

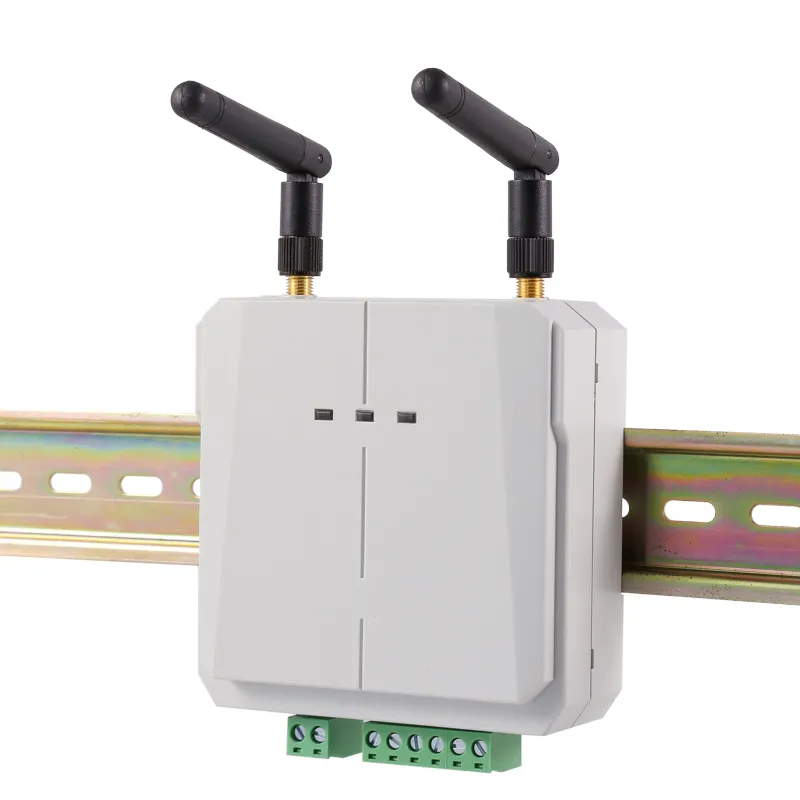

● 35mm DIN Rail Installation

Product Detail:

General

ATC600 wireless temperature transceiver can adopt guide rail (Din 35mm) installation or bolt fixing. Wireless temperature transceiver is used for temperature monitor system. ATC600 wireless temperature transceiver is used to receive data from ATE100/200/400 wireless temperature sensor, can be connected up to 240pcs of the sensors. And transmit data to PLC, temperature meter or other device by RS485 Modbus-RTU.
