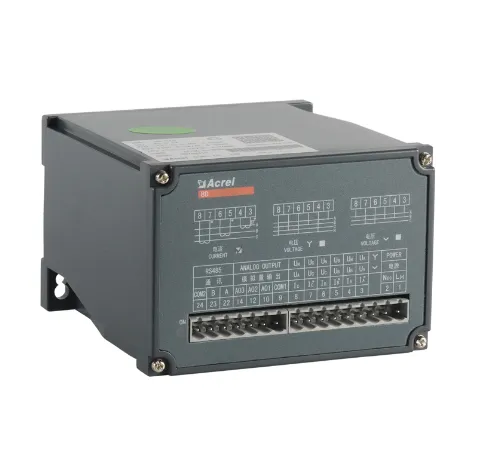

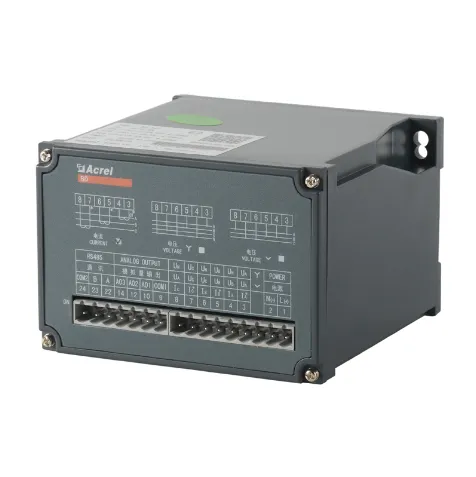

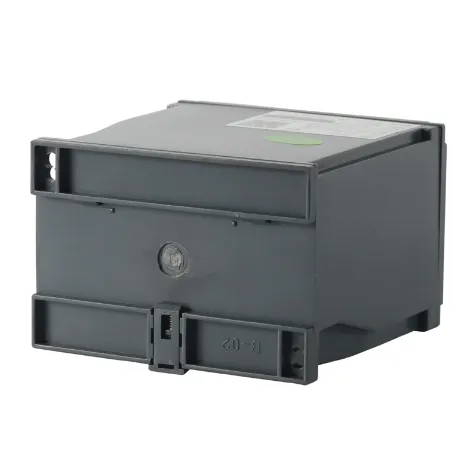

3 Phase 4 Wire Voltage Transducer BD-4V3

● Model: BD-3V3 / BD-4V3 Voltage Transducer

● AC current input: AC0-300V, 0-500V
● Overload: 1.2 times of rated value
● Analog Output: DC0-5V/0-10V/0-20mA/4-20mA
● Power supply: AC85-265V/DC24V/DC48V

● Isolation withstand voltage, strong anti-interference, load bearing capacity

● Applied in data center, buillding, industry, seaport, etc.

● Connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system

Product Detail:

General
BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current,voltage frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.
