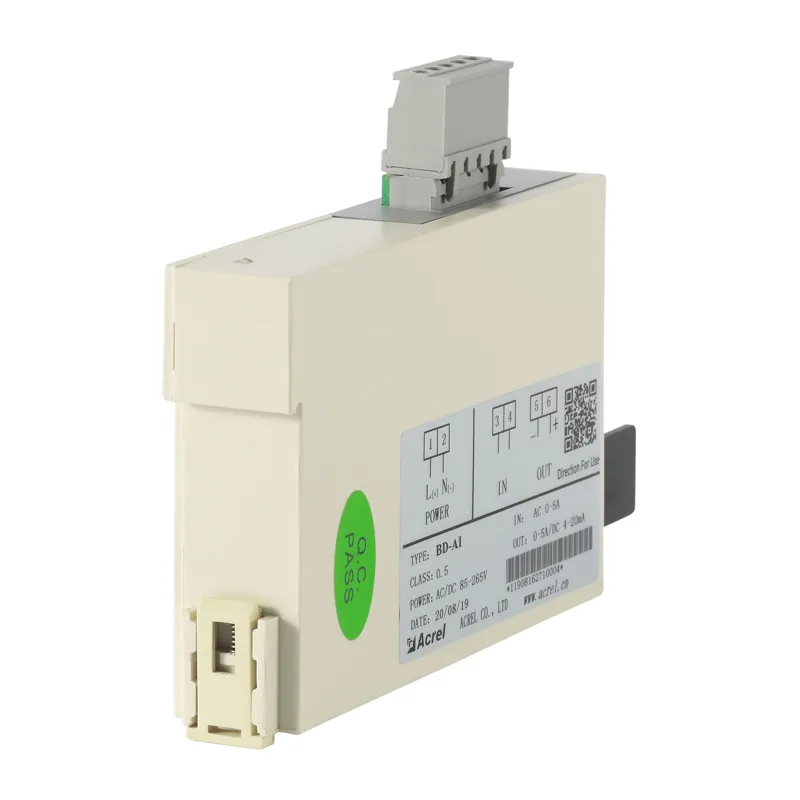

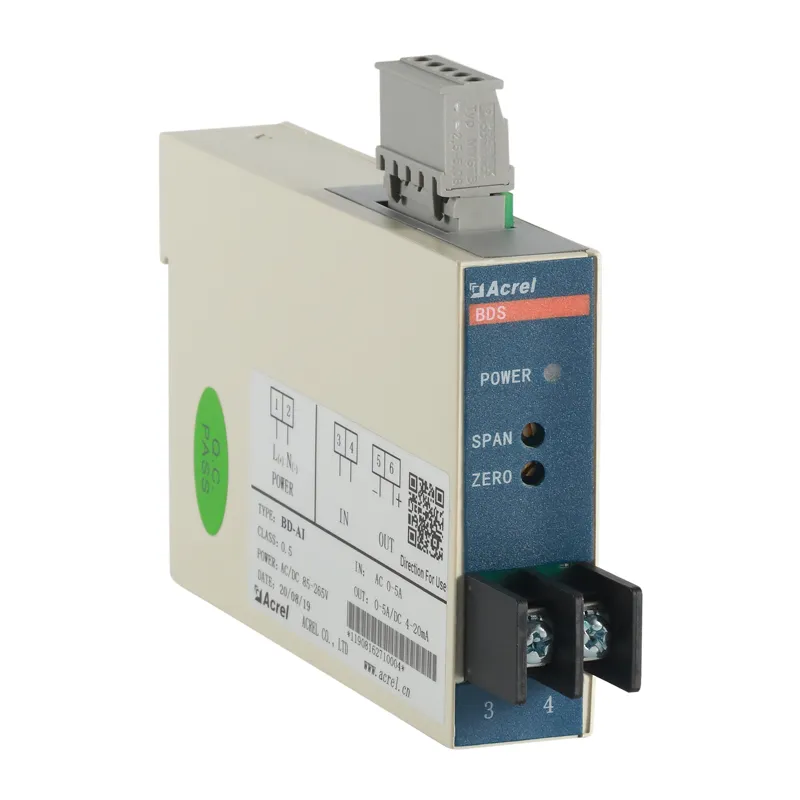

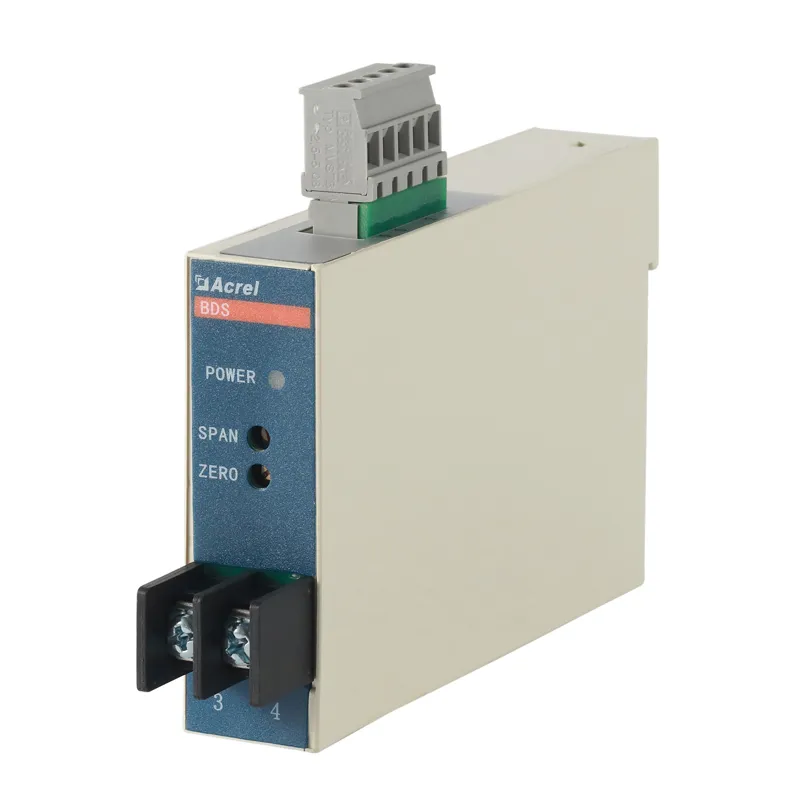

AC Electrical Current Transducer BD-AI

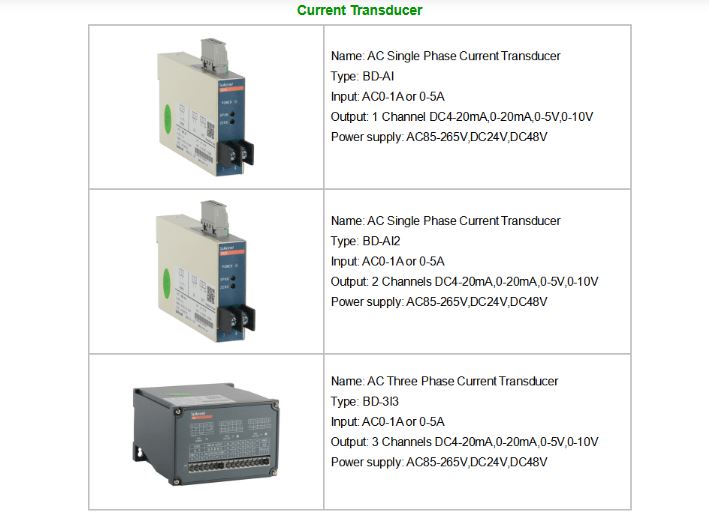

● Model: BD-AI / BD-AI2 Current Transducer

● AC current input: 0-1A or 0-5A
● Overload: 1.2 times of rated value
● Analog Output: DC0-5V, DC0-10V, DC0-20mA and DC4-20mA
● Power supply: AC85-265V, DC24V or DC48V

● Isolation withstand voltage, strong anti-interference, load bearing capacity

● Applied in data center, buillding, industry, seaport, etc.

● Connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system

Product Detail:

General

BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current,voltage frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.
