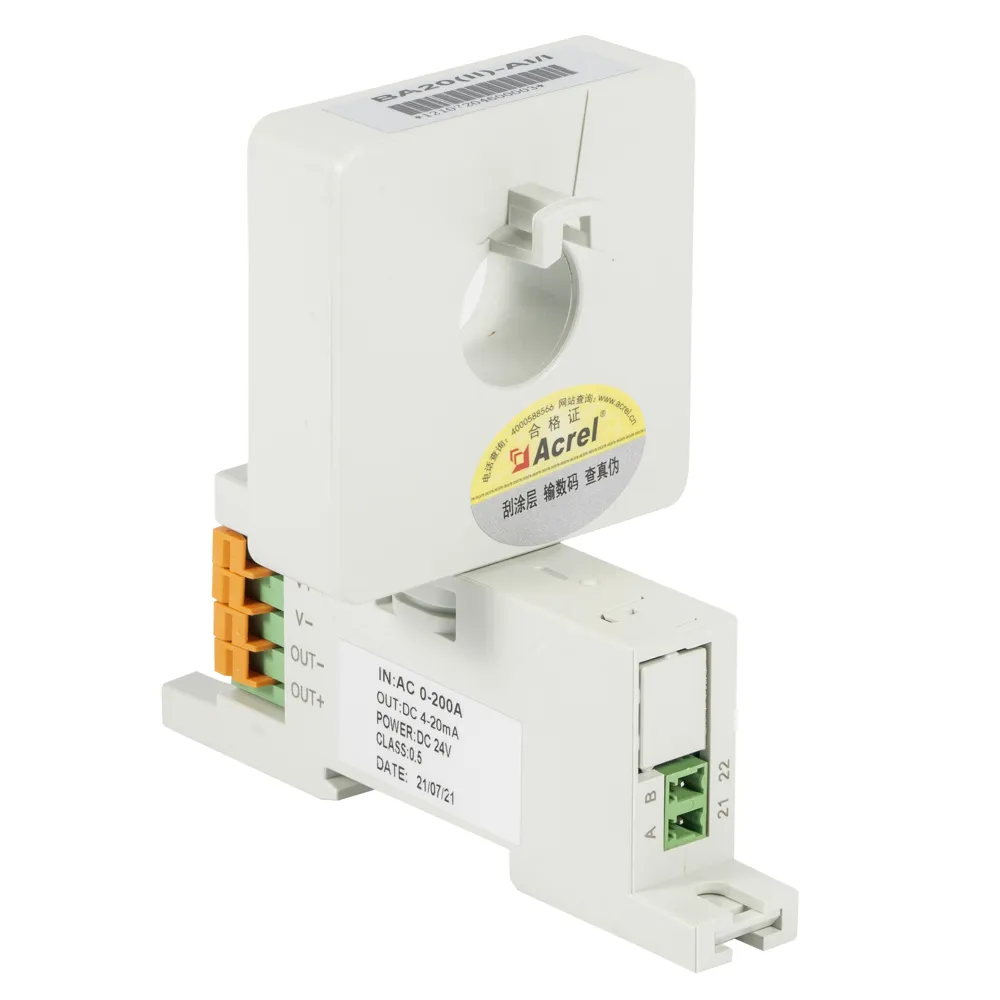

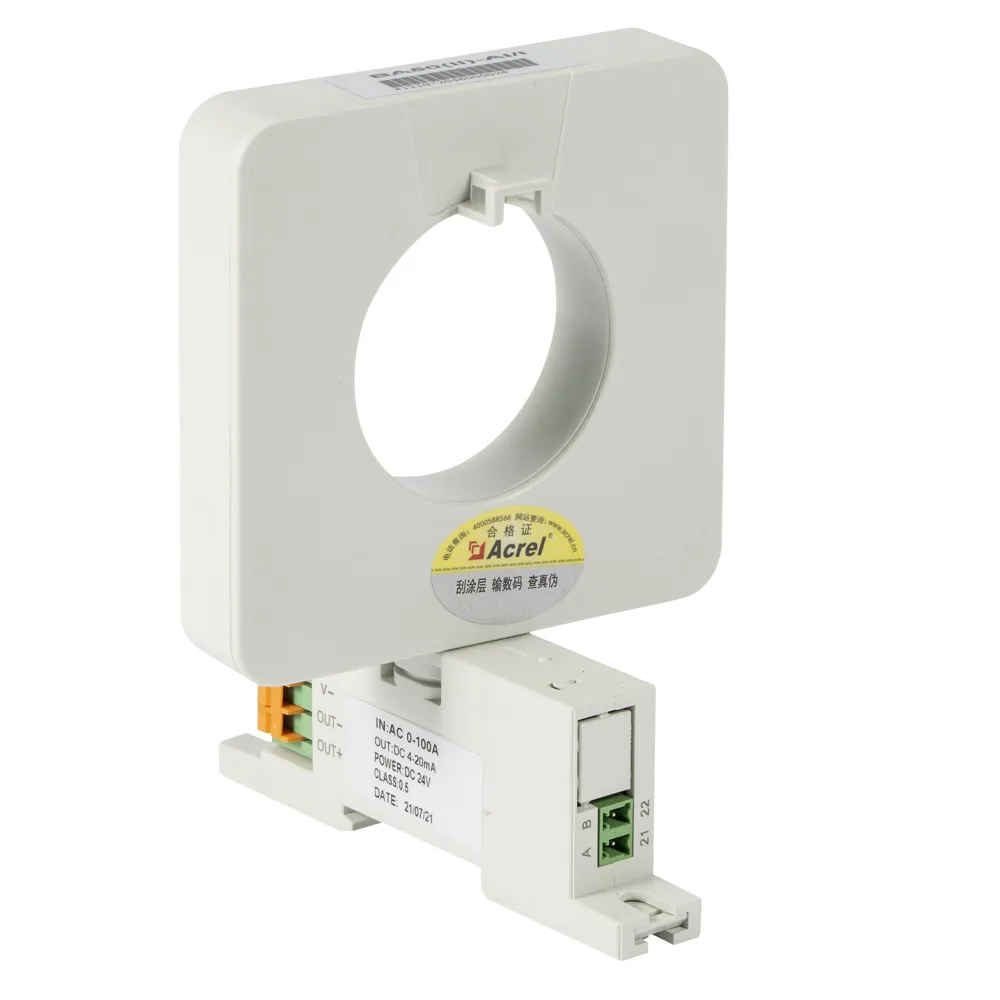

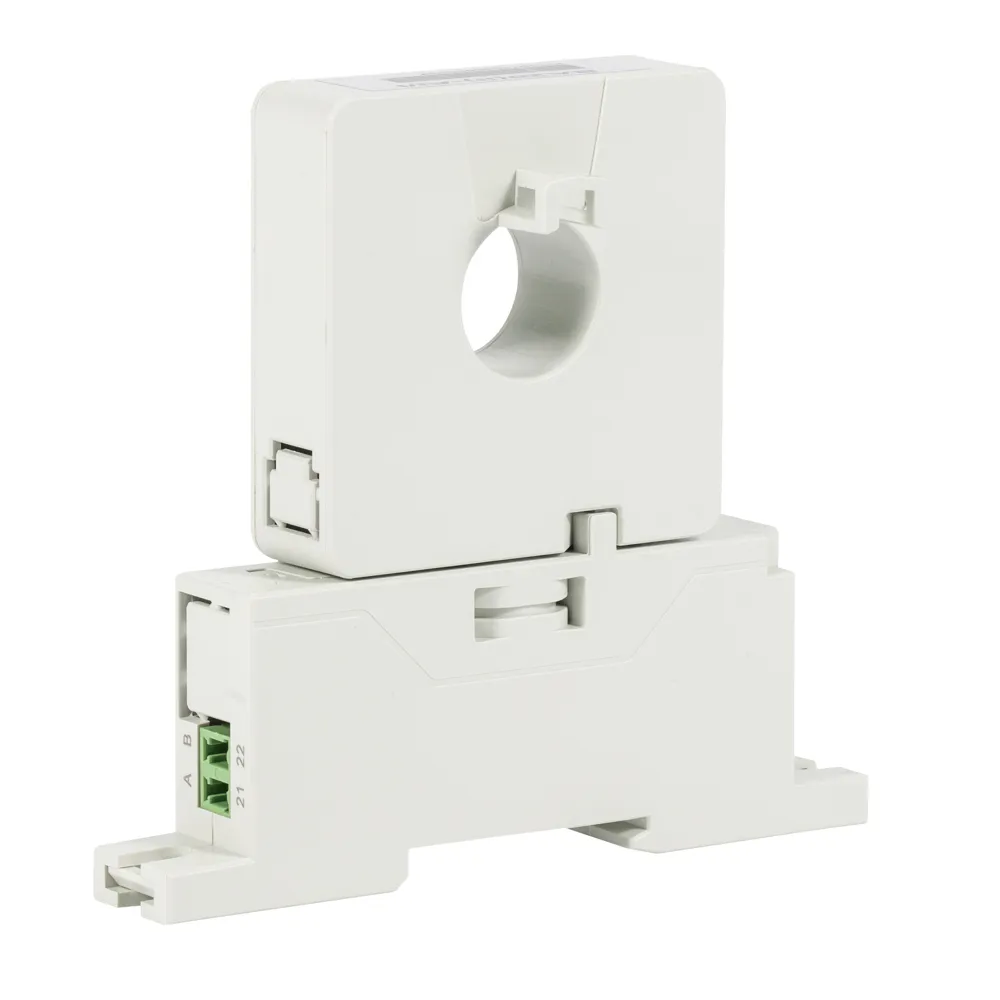

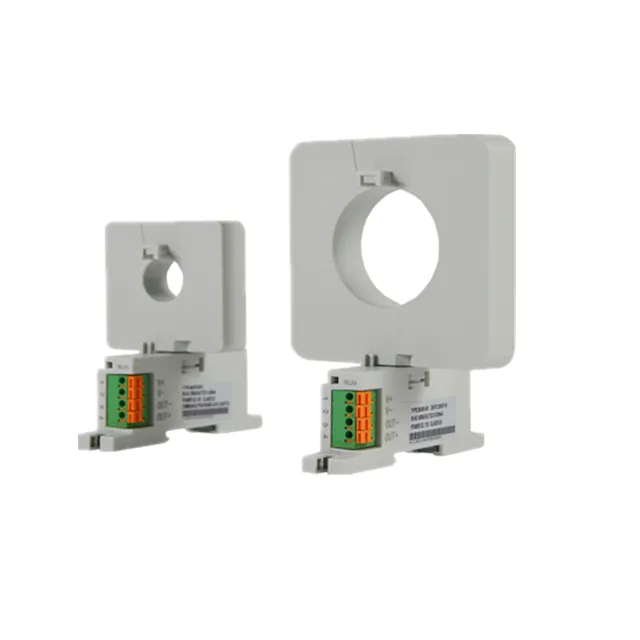

AC Residual Current Transducer BA50L(II)-AI/I

● Model: BA50L-AI/I Residual Current Transducer

● Input: AC 0～(0.1～1)A; Analog Output: DC4-20mA/0-5V

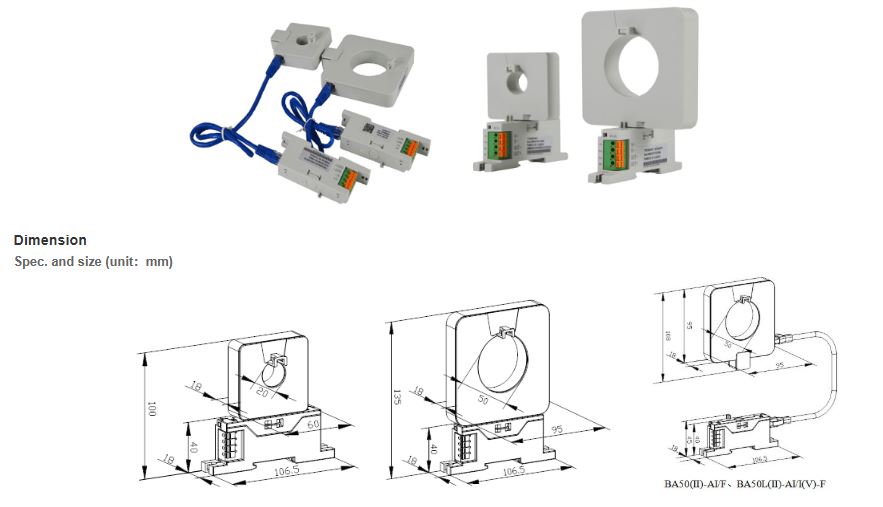

● Aperture: 50mm; Power supply: DC12V/DC24V

● Overload: 1.2 times of rated value

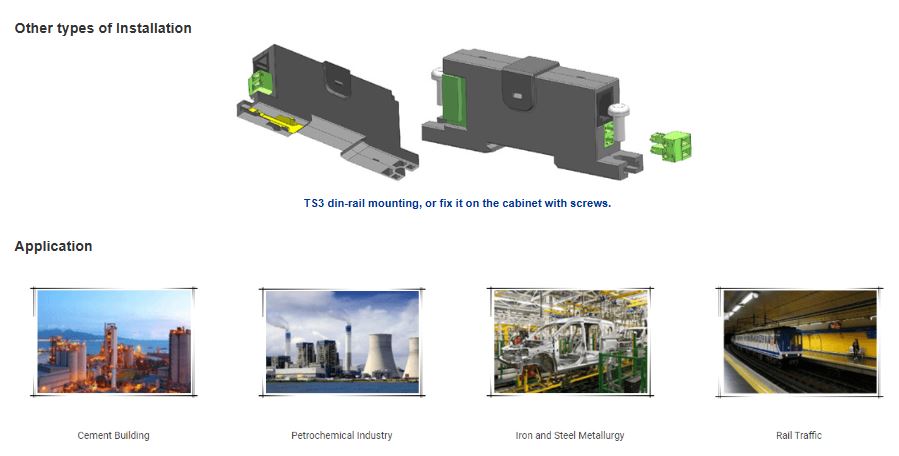

● 35mm DIN Rail Installation

● Suitable for detecting the leakage current of the electrical system

● Applied in cement factory, rail traffic, iron and steel metallurgy, petrochemical industry, etc.

Product Detail:

General

BA series conduct the real-time measurement on the alternating current in the power grid according to the electromagnetic induction theory. They utilize the precise constant current technology and the linear temperature compensation technology to isolate and convert the measured current into the DC signal.They adopt the 24V or 12V power supply. They feature the large overload capacity, high accuracy, isolation and safety and low power consumption. Applications cover the industrial automation sector.

BA50L(Ⅱ)-AI is an AC residual current transformer, which mainly detects the leakage current of the electrical system, can grasp the status of electrical circuits and equipment at any time, and prevent fires and other accidents caused by leakage.
