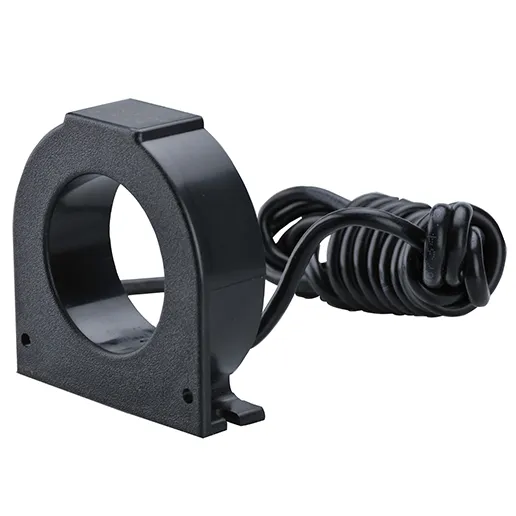

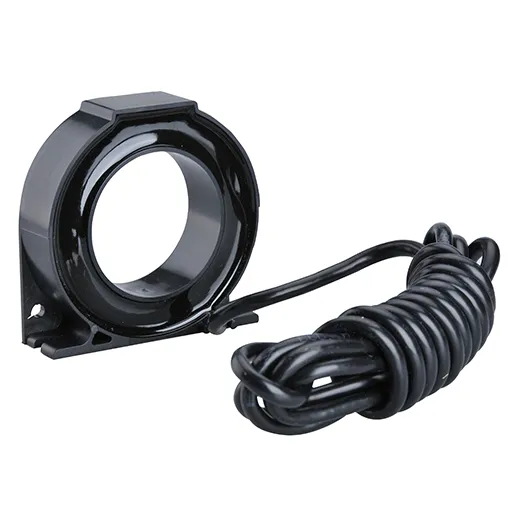

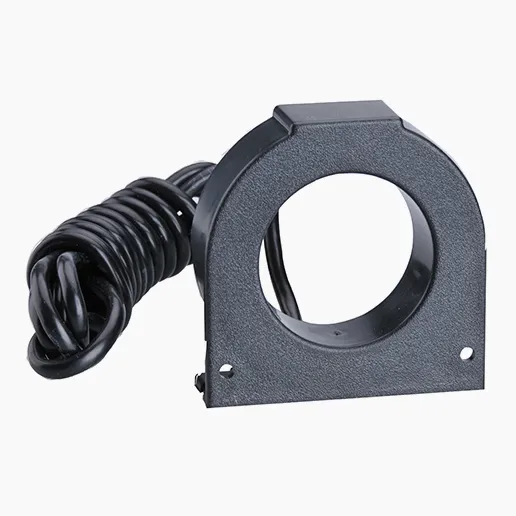

AKH-0.66/L-45 Leakage Current Transformer

● Model: AKH-0.66/L-45 Low Voltage Leakage CT

● Aperture: 46mm; Accuracy: Class 1

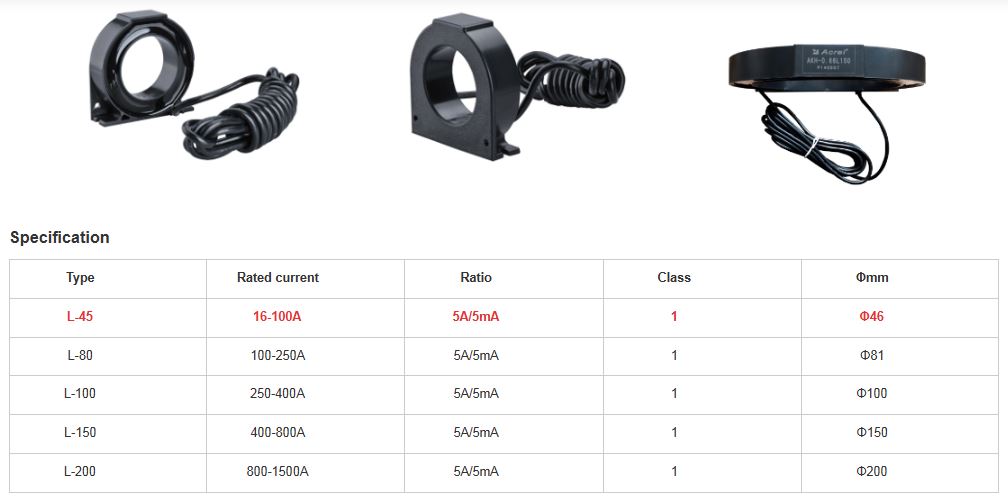

● Rated Ratio: 5A/5mA; Rated current: 16~100A

● Current transformer for AC measurement

● Used with electrical fire monitoring devices, motor protection devices and residual current relays

Product Detail:

General

AKH-0.66L leakage current transformer is used for the collection of residual current, and can be used with electrical fire monitoring devices, motor protection devices and residual current relays.The secondary output of this product is 0~5(2)mA or 0~1V. There are round hole type and square hole type for users to choose according to their needs.
