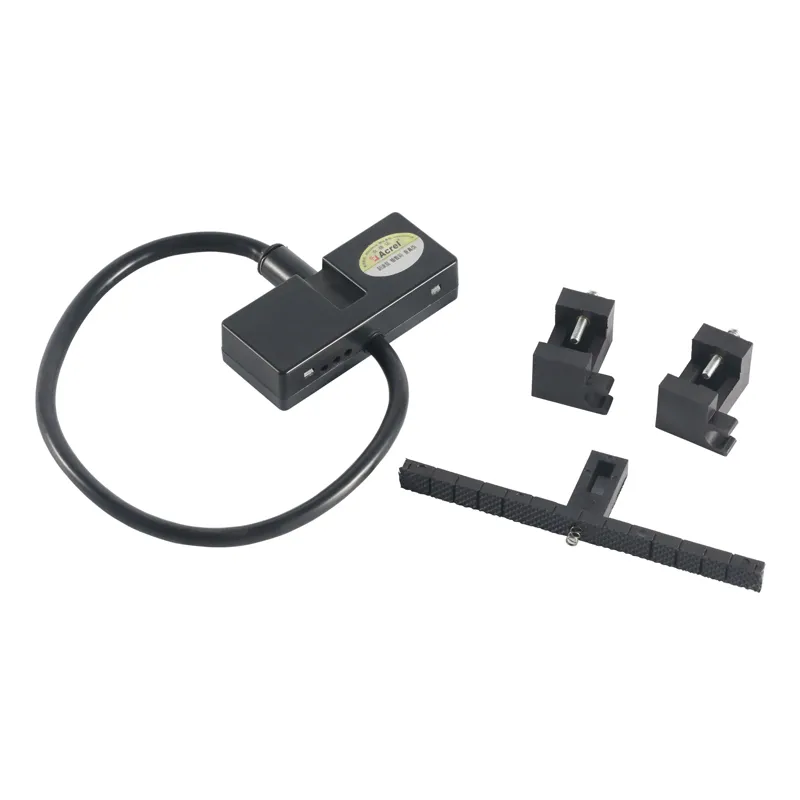

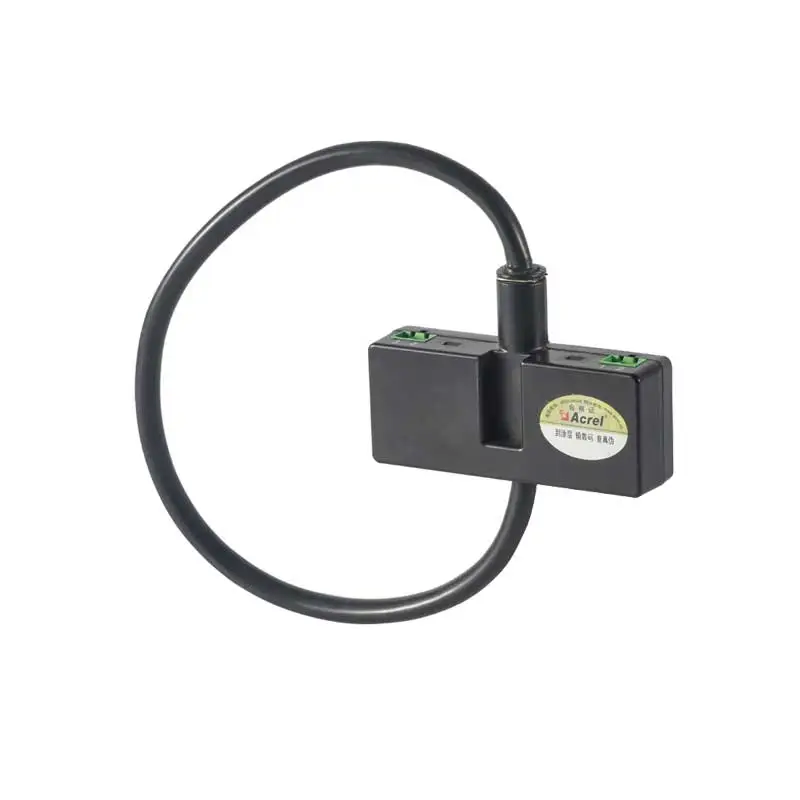

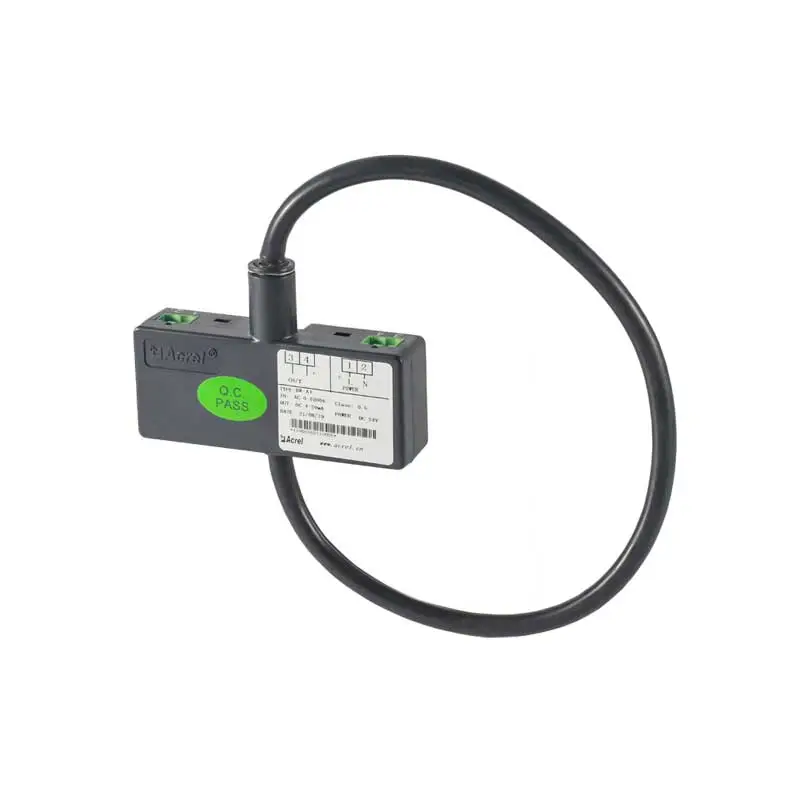

BR-AI DC24V Rogowski Coil Transducer

Measuring

-Rogowski coil and RMS measurement

-Super-Current Measurement, Direct measurement up to 30000A

-Overload: 1.2 times of rated value

Application
-Industrial automation

-Metallurgical and Electroplating

Product Detail:

General

BR series conduct the real-time measurement on the alternating current in the power grid according to the electromagnetic induction theory. They utilize the RMS and the linear compensation technology to isolate and convert the measured current into the standard DC signal.24VDC safety source features high precision, isolation and safety and low power consumption. It is widely used in metallurgical, electroplating, welding and other fields.
