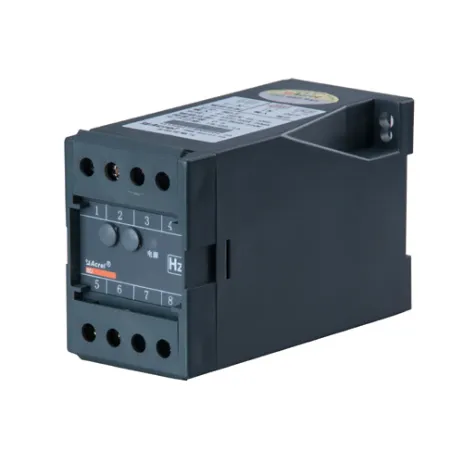

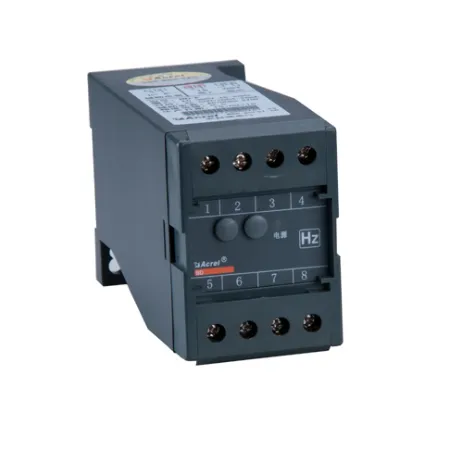

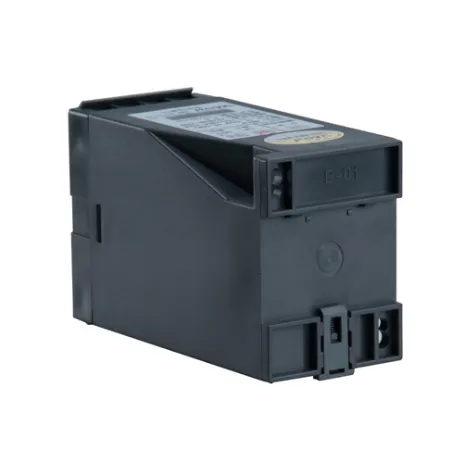

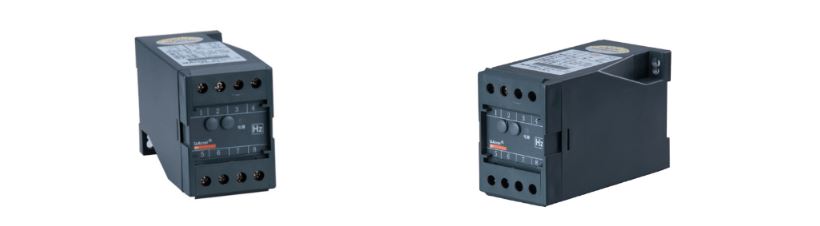

Frequency Electric Transducer BD-F

● Model: BD-F Frequency Transducer

● Input: current 1/5A

● Voltage: 100/220/380V

● Output: DC4-20mA, 0-20mA, 0-5V, 0-10V

● Accuracy: Class 0.5

● Power supply: AC85-265V / DC24V

Product Detail:

General

BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current,voltage frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.
